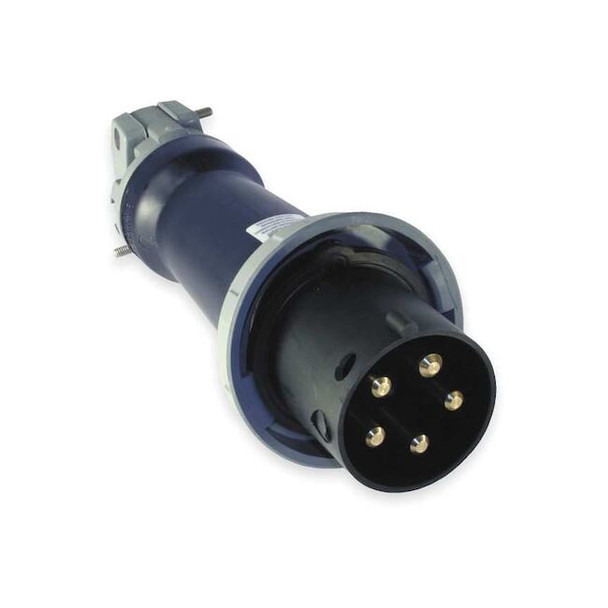

Hubbell Wiring Device-Kellems HBL560P5W

The HUBBELL IEC Pin and Sleeve Plug is a rated for use in industrial environments requiring up to 60A and 600V AC. Rated for 60A and up to 600V AC, this plug includes a Zytel 801 nylon housing with a gasketed sealing ring for IP67 ingress protection. It accommodates three-phase (3Y) power with four poles and five wires, supporting wire sizes from #8 AWG to #2 AWG.Key Features of the HUBBELL IEC Pin and Sleeve Plug: Current/Voltage Rating: Rated for 60 A at 347/600V ACBody Material: Constructed from impact- Zytel 801 nylon compositeWatertight Design: Gasketed sealing ring provides IP67 ingress protectionCord Type Compatibility: Compatible with portable cords within specified cable diameter range; cord mounted design supports cable diameters from 0.5 in to 1.45 inWire Connection: Pressure terminal screws accommodate #8 AWG to #2 AWG conductorsOperating Temperature Range: -40°C to +75°C (non-impact conditions)Standards Compliance: CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)Phase/Wiring Configuration: Three-phase Y configuration; four poles, five wires; grounded per IEC conventionsHorsepower Rating: Rated for use with motors up to 25 hp
