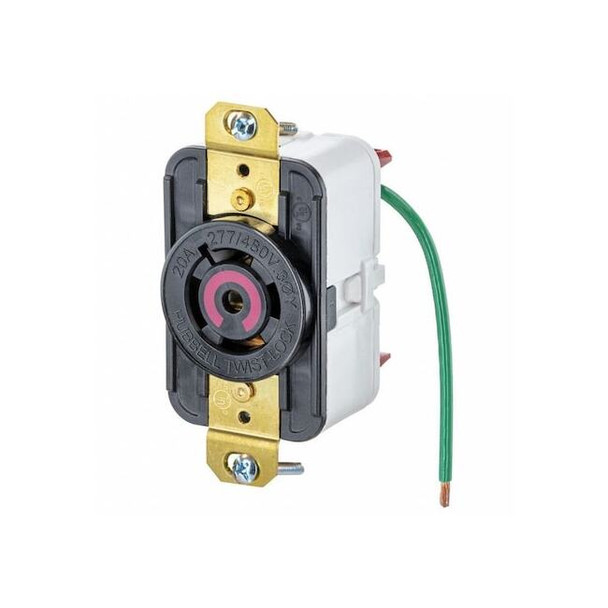

Hubbell Wiring Device-Kellems HBL2520ST

The HUBBELL Locking Receptacle is a 20A, three-phase wye, 277/480V AC twist-lock receptacle suitable for use in commercial and industrial settings. It features spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches. The device has a nylon housing with color-coded face aids in voltage identification and device alignment.Key Features of the HUBBELL Locking Receptacle: Amperage/Voltage: Rated for 20 A at 277/480V AC, three-phaseNEMA Configuration: L22-20R; polarized and groundedWire Connection Type: Spring clamp terminals support solid (14–10 AWG) and stranded (14–8 AWG) wiresContact Material: Brass contacts used for conductivityHousing Material: Impact- nylon construction with black finishOperating Temperature Range: -40°F to 167°F (-40°C to 75°C)Mount Type: Flush mount; includes mounting strap and hardwareNEMA Enclosure Rating/IP Rating: NEMA 1 / IP20 rated for indoor useStandards Compliance: Meets UL 498 and CSA C22.2 standards
