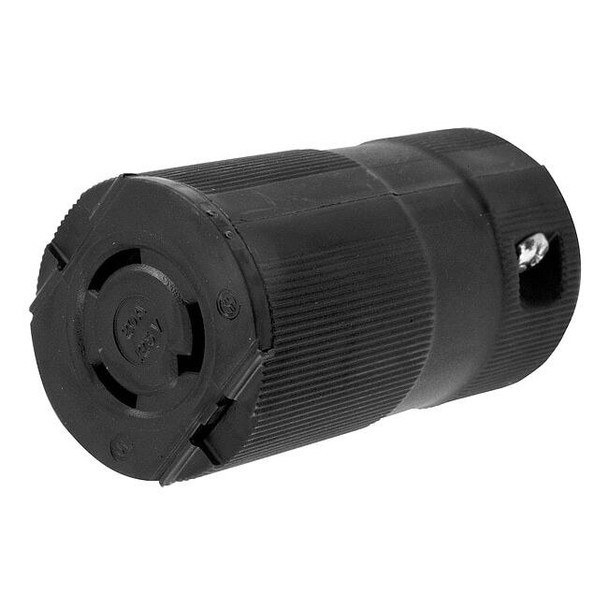

Hubbell Wiring Device-Kellems HBL2313VBK

The HUBBELL 20A Midget Locking Connector (L5-20R) is an industrial locking connector intended for electrical connections in indoor, dry locations. It features a nylon body that is impact and crush , with clamp-type terminals designed to bundle conductor strands when tightened to provide reliable contact. The device accommodates stranded copper wire sizes from #14 AWG to #8 AWG and supports cable diameters between 0.325" and 0.720".Key Features of the HUBBELL 20A Midget Locking Connector: Amperage/Voltage Rating: Rated for 20 A at 125V AC, single phase.NEMA Configuration: L5-20R, grounded with two poles and three wires.Body Material: Nylon housingCable Range: Accepts cables with outside diameters from 0.325" to 0.720".Contact Material: Brass contacts for electrical conductivity.Wire Connection Type: Screw terminals accommodate #14 AWG–#8 AWG stranded copper wire only.Insulation: insulated body enhances protection against accidental contact.Cord Grip: intended to help maintain wire position at the terminalTemperature Rating: Operates continuously up to 75°C; minimum -40°C without impact (-25°C with impact).Flame Resistance & Standards Compliance: Meets UL 94 HB flammability rating; certified under CSA C22.2 No.42, Fed.Spec W-C-596, UL 498 standards.IP Rating: IP20 – suitable for indoor use in dry conditions unless additional protection is provided.
