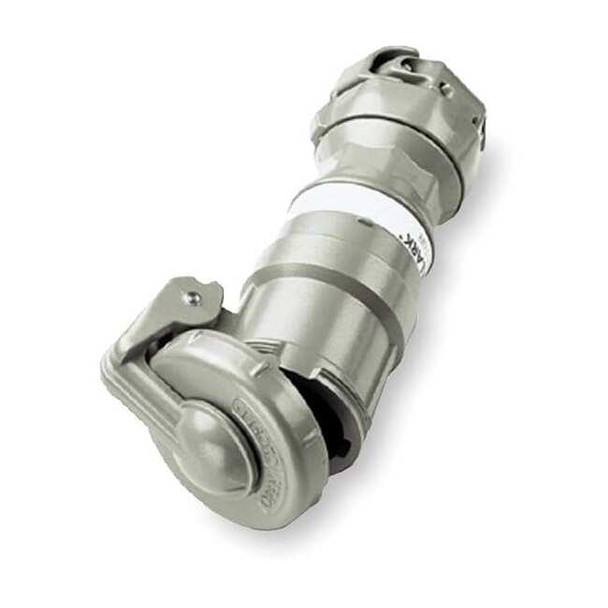

Hubbell Killark VPR3465

The HUBBELL Pin & Sleeve Connector is a 30A, 4-pole, 3-wire device rated for up to 600V AC/250V DC. For use with the VersaMate series, this connector features an octagonal body style for grip and is rated for indoor and outdoor environments as specified; see ratings below, including wet, corrosive, hazardous locations. The housing is constructed from copper-free aluminum with a baked powder epoxy/polyester finish for corrosion resistance.Key Features of the HUBBELL Pin & Sleeve Connector: Current/Voltage Rating: 30 A; 600V AC / 250V DCPole/Wire Configuration: 4 poles, 3 wires; grounded (Style II)Housing Material: Copper-free aluminum with epoxy/polyester coatingNEMA Enclosure Rating: Type 4X when mated with VersaMate receptacle and locking ring tightenedHazardous Location Specification: Rated Class I Divisions 1 & 2 Groups B,C,D; Class II Divisions 1 &2 Groups F,G; Class III Divisions 1 &2Screw Terminals: Box terminals with gripper ribs designed to clamp conductorsCable Accommodation: Accepts cable diameters from 0.55 in to 1.20 in (6 AWG max.,10 AWG min.)Contact Material: Brass contacts used for electrical connectionShrouded Design and Straight Connection OrientationCompatible Series: For use with VersaMate products; suitable for Type P marine cable applications
