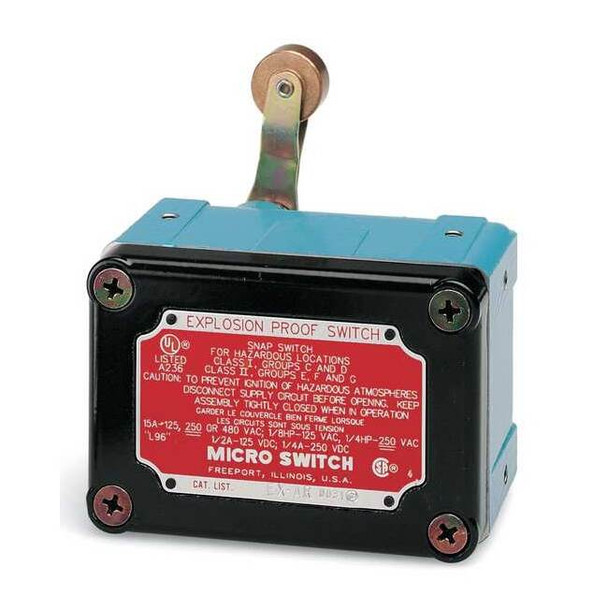

Limit Switch - Explosion Proof, Rotary Roller Lever, SPDT, Aluminum Housing EX-AR30

MICRO SWITCH EX Series Explosion Proof Limit Switches from Honeywell feature a compact, miniature aluminum housing suitable for installation in environments classified as hazardous, per applicable certifications and standards. The switch utilizes a rotary roller lever actuator located at the top of the unit and is equipped with screw terminal electrical connections. It offers a contact configuration of 1NC/1NO (SPDT) and can be surface mounted using two horizontal mounting holes. Key features: - AC Contact Rating: 15A at 600V; DC Contact Rating: 0.25A at 250V - Actuator Style: Rotary, Roller Lever; Actuator Length: 1.5 in; Roller Diameter: 0.75 in (bronze) - Body Dimensions: Height 2.56 in, Width 2.78 in, Depth 2.02 in; Body Material: Aluminum - Operating Temperature Range: -40°F to 160°F - Electrical Connection: Screw Terminals; Wiring Entry Size: 1/2"-14 NPT - Mounting Style: Surface mount with two horizontal mounting holes (10-32 thread), spacing of 2.06 in center-to-center - Certifications and Standards: ATEX, IEC Ex, CSA, UL for hazardous location classifications including Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G
