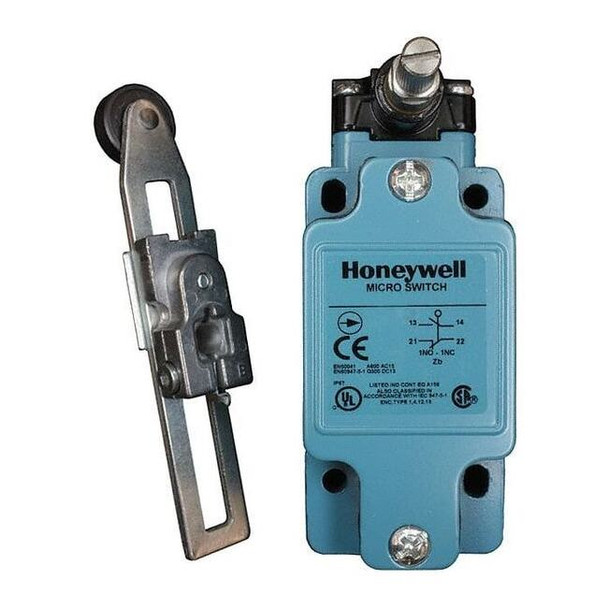

Limit Switch - Rotary Roller Lever, SPDT, Die Cast Zinc, NEMA 4-12-13, IP67 GLAA01A2B

Honeywell's MICRO SWITCH GLA Series Limit Switch is a rotary, roller lever limit switch manufactured in accordance with EN50041 dimensional specifications. It features a modular design with interchangeable heads, actuators, bodies, and contact blocks for flexible configuration. The switch has a die-cast zinc housing rated for use in environments requiring enclosure sealing per NEMA types 1, 4, 12, and 13; IP67. Key Features: - Contact Ratings: 10A at 600V AC; 10A at 250V DC - Actuator Style: Rotary roller lever arm, side-mounted; actuator length adjustable from 1.50" to 3.50" - Body Construction: Die cast zinc; body dimensions are 3.23" height x 1.65" width x 1.65" depth - Electrical Connection: Screw terminals with threaded entry (1/2 in NPT) - Movement & Travel: Operates CW or CCW with differential travel of 12°, pretravel of 26°, overtravel of 59° - Mounting: Surface mount with four mounting holes (0.21 in diameter), rectangular pattern - Enclosure Ratings: NEMA types 1, 4, 12, and13; IP67 rated - Operating Temperature Range: -13°F to +185°F (-25°C to +85°C) - Standards Compliance: CCC, IEC947-5-1, CE, CSA, EN60947-5-1, UL508 Configured with one NC and one NO SPDT contact form
