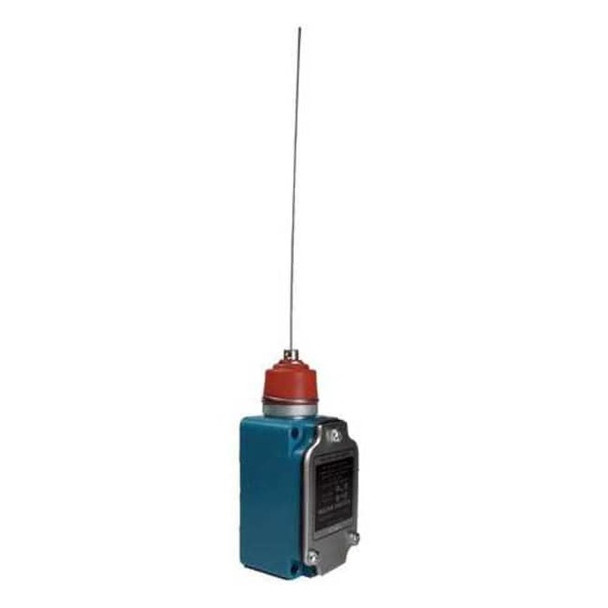

Limit Switch - LS Series, Wobble Stick Actuator, 10A 480V AC, NEMA 1-3-4-6-13 8LS125

Honeywell's MICRO SWITCH Compact LS Limit Switch Series is suitable for various industrial applications, subject to compatibility with application requirements and specifications. This limit switch features a wobble stick actuator mounted on the top, including an actuator capable of detecting movement from multiple directions within the specified mechanical limits. The non plug-in body configuration is constructed from zinc die cast material with a miniature form factor, featuring a compact zinc die cast body as specified; durability may vary depending on conditions of use. Key Features: - Contact Rating: 10A at 480V AC (1NC/1NO SPDT) - Actuator Style: Wobble Stick, steel arm, 7.5 in length - Mounting: Surface mount with four 0.19 in diameter holes (rectangular pattern; spacing 2.31 in x 1.19 in) - Body Dimensions: Height 2.7 in, Width 1.19 in, Depth 1.13 in - Movement Detection: Includes an actuator capable of detecting movement from multiple directions within the specified mechanical limits; maximum pretravel of 1.125 in and overtravel of 2.5 in - Operating Force: Maximum of 1 ozf - Temperature Range: -20°F to +160°F - Electrical Connection: Screw terminals; wiring entry via 1/2" NPT - Enclosure Ratings: NEMA Types 1, 3, 4, 6, and 13 - Standards Compliance: CSA and UL
