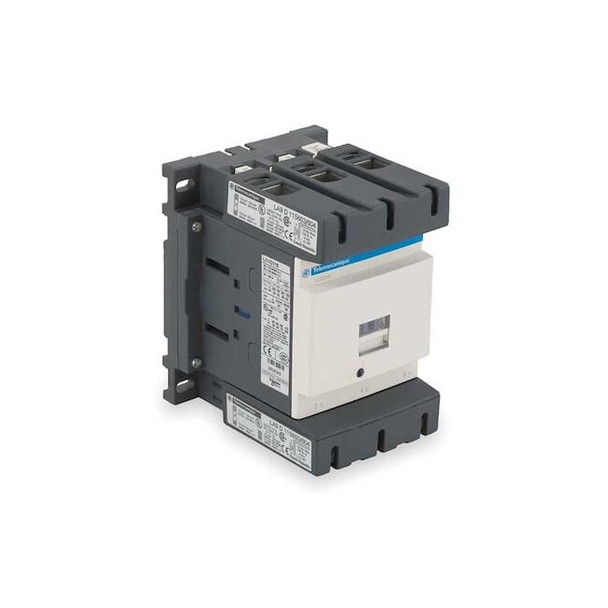

IEC Magnetic Contactor, 1NC-1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp LC1D150B7

The item is an IEC Magnetic Contactor (TeSys Deca series) with 3 poles and a 24 V AC coil. The device is intended for use in controlling motor and resistive load circuits within specified parameters. The device uses screw clamp terminals, includes 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total), and includes an integrated surge suppression component (not guaranteed to prevent all damage). It ships without an enclosure and is suitable for use in IEC-standard control panel configurations. - Action: Non-Reversing - Poles: 3 - Coil Voltage: 24 V AC - Auxiliary Contacts: 2 (1NO/1NC) - Auxiliary Contact Form: 1NC/1NO - Electrical Connection: Screw Clamp Terminals - Integrated Surge Suppression Component: Yes (not guaranteed to prevent all damage) - Includes Protective Cover: Yes - Enclosure/NEMA Rating: No Enclosure - IP Rating: IP20 - Series: TeSys Deca - Height: 6.22 in - Depth: 5.12 in - Width: 4.33 in - Net Weight: 2.5 kg - Phase: Three - Rated Voltage: 1000 V AC, 300 V DC - Frequency: 50/60 Hz - Maximum Voltage Rating: 1000 V AC
