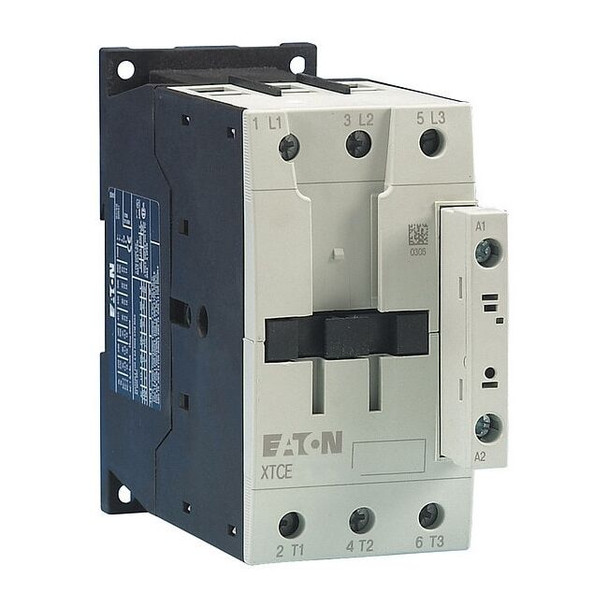

Eaton XTCE065D00C

The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 480 V AC coil. It uses screw terminals and has no auxiliary contacts, rated for use within the specified application parameters and compliant with IEC standards. - Product Name: Eaton XT IEC contactor - Poles: 3 - Action: Non-Reversing - Coil Voltage: 480 V AC - Amperage rating: 65 A (inductive) / 98 A (resistive) - Auxiliary Contacts: No auxiliary contacts (0 NO, 0 NC) - Frame Size: D; Series: XT - Mounting Style: DIN Rail, Panel - Terminal Connection: Screw - Enclosure: No Enclosure - IP Rating: IP20 - Maximum Voltage Rating: 690 V AC - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947 - Standards: CE Marked; RoHS; UL Listed; CSA - Frequency: 50/60 Hz - Mechanical Durability: 10,000,000 cycles - Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) - Operating Temperature: -13°F to 122°F
