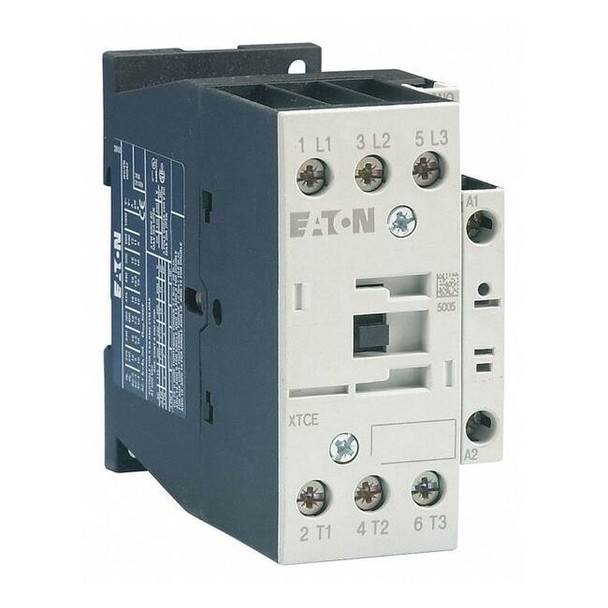

IEC Magnetic Contactor, 1NC, 240V AC, 3 P, Non-Reversing, Screw XTCE032C01B

The Eaton XT IEC contactor is an IEC-style magnetic switching device rated for controlling power circuits within specified parameters. It is non-reversing, has 3 poles with a 1NC auxiliary contact, and uses a 240 V AC coil with screw terminals. The unit is a frame C, XT series contactor suitable for mounting on DIN rail or panel; IP20 rating indicates the level of protection against solid objects. - Poles and auxiliary: 3 poles; 1 NC auxiliary contact (1NC) - Coil voltage: 240 V AC - Action: Non-Reversing (Reversing: No) - Electrical ratings: Full Load Amps Inductive 32 A; Resistive 45 A; Full Load Current Inductive 32 A; Resistive 45 A; Frequency 50/60 Hz; Maximum Voltage Rating 690 V AC - Terminals and mounting: Screw terminals; Mounting on DIN Rail, Panel - Frame/Series: Frame C; Series XT - Standards and certifications: CE Marked; IEC 60947; EN 60947; UL Listed; CSA Certified; RoHS - Enclosure and protection: IP20; No Enclosure - Dimensions: Width 1.85 in; Height 3.9 in; Depth 3.82 in - Auxiliary contacts included: Yes (1)
