Asco SU8210P095 100-240

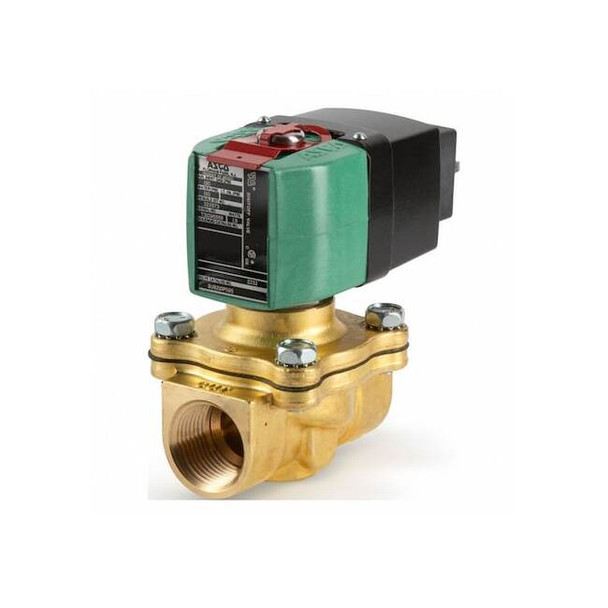

The ASCO SU8210P095 100-240 Solenoid Valve is a pilot-operated, normally closed valve designed for a 1-second response time. Constructed with a brass body and equipped with an included coil featuring class H insulation, it supports operation within an ambient temperature range of 14°F to 140°F. This 2-way valve; orifice diameter 3/4 in and nominal pipe size of 3/4 inch. The valve operates with a voltage range of 100V to 240V AC/DC at 60 Hz frequency and includes DIN electrical connections with a 1/2 inch conduit hub for wiring. Key Features: - Valve Type: High Flow, Pilot Operated, Normally Closed - Body Material: Brass - Valve Ways: 2-Way - Nominal Pipe Size and Orifice Diameter: 3/4 in - Operating Pressure Differential: Maximum 350 psi (Air/Inert Gas), 150 psi (Water); Minimum 0 psi - Fluid Temperature Maximum: 180°F - Media Compatibility: Air, Aggressive Gases, Aggressive Liquids, Ammonia, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water - Electrical: 100V to 240V AC/DC, 60 Hz frequency, 1.5 W wattage, Coil Insulation Class H - Coil Enclosure: Conduit Hub - Electrical Connections: DIN with 1/2 in Conduit Hub - Seal Material: NBR - Mounting Orientation: Vertical - Response Time: 1 sec - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor - Standards: UL Listed
