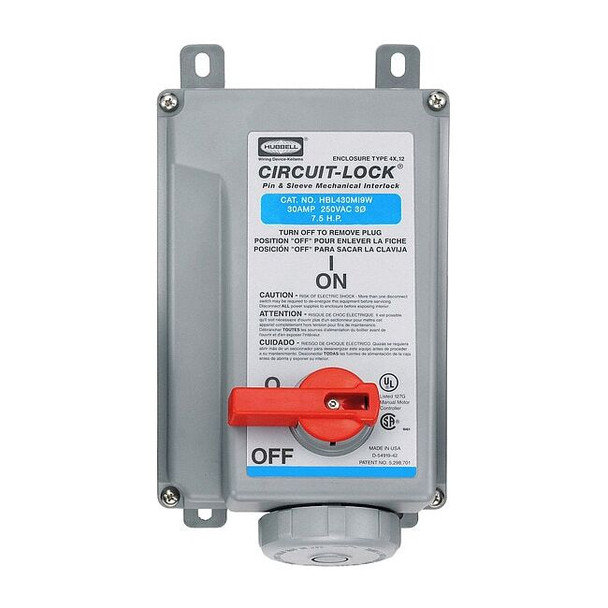

Hubbell Wiring Device-Kellems Receptacle,Interlock HBL430MI9W

The HUBBELL Unfused Circuit-Lock Watertight Mechanical Interlock is a pin and sleeve device rated for use with specified ampacity in environments requiring watertight electrical connections, suitable for indoor and outdoor applications. This unit integrates a disconnect switch with the receptacle, providing a means to visually verify disconnection when the plug is removed and locked out. The interlock mechanism restricts operation of the switch unless the plug is engaged, and restricts removal of the plug until the switch is off. It features a non-metallic housing; housing can be used with metallic conduit; consult installation instructions regarding grounding requirements, compatible with metallic conduit without affecting ground continuity, and supports IEC 60309-2 plugs.Key Features of the HUBBELL Unfused Circuit-Lock Watertight Mechanical Interlock: Amperage Rating: 30 AVoltage Rating: 3 Phase 240V AC (max voltage 600V AC)Maximum motor rating: 7-1/2 hp (per manufacturer specifications)Circuit Breaker/Fuse Protection: Non-fused designElectrical Connection Type: Pin and sleeve with pressure terminal screwsCord Size Compatibility: Accepts #12 AWG to #8 AWG wire sizesNumber of Poles/Wires: 3 poles, 4 wires configurationIngress Protection & Ratings: IP67; NEMA ratings 4X (watertight) & 12 (dust-tight)Operating Temperature Range: -40°C to +75°C continuous operationHousing Material & Resistance Properties: construction; UV stabilized; UL94-5VA/V0 flammability rating; impact per UL746C standardsGrounding Feature: Includes grounding feature as part of its design
