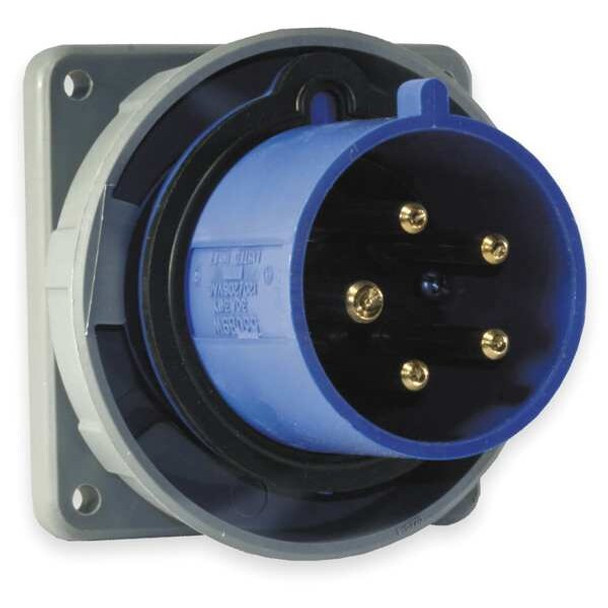

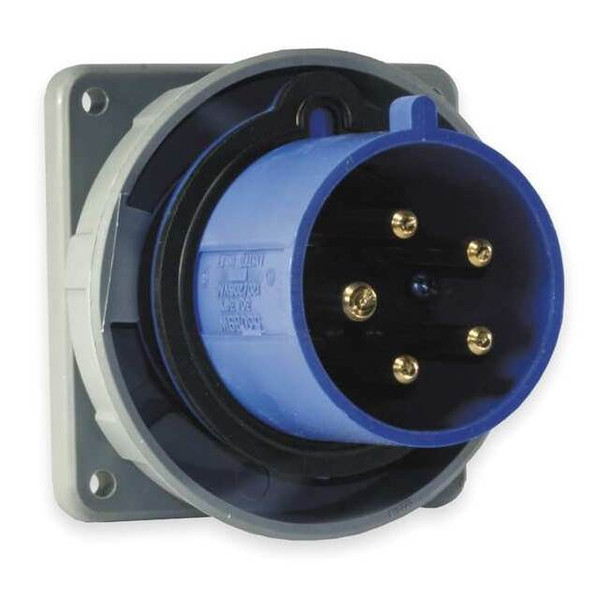

Hubbell Wiring Device-Kellems HBL560B9W

The HUBBELL IEC Pin and Sleeve Inlet, 60A, 120/208V is an IP67-rated electrical inlet suitable for use in industrial settings. This device is constructed with a Zytel 101 nylon body and flange.Key Features of the HUBBELL IEC Pin & Sleeve Inlet: Current Rating: Rated for 60 amps at 120/208V AC, suitable for high-capacity applications.IP67-rated Construction: Gasketed sealing ring and raised collar around each phase pin; rated IP67 moisture resistance.Material Composition: Body, flange, and housing made from Zytel 101 nylon; gasket material is neoprene; retainer constructed from high-impact thermoset.Cord Compatibility: Accepts wire sizes from #8 AWG to #2 AWG via pressure terminal screws.Temperature Range: Operates between -40°C to +75°C without impact degradation.Flammability & UV Resistance: UL 94 V-0 flammability rating; all materials are UV stabilized for durability in various environments.Standards Compliance: CSA Certified LR280C; UL Listed E146032; conforms to IEC 60309-1/-2 requirements.Design Attributes: Shrouded design with insulated body, grounded per IEC style, switch rated, no cap or cover included.
