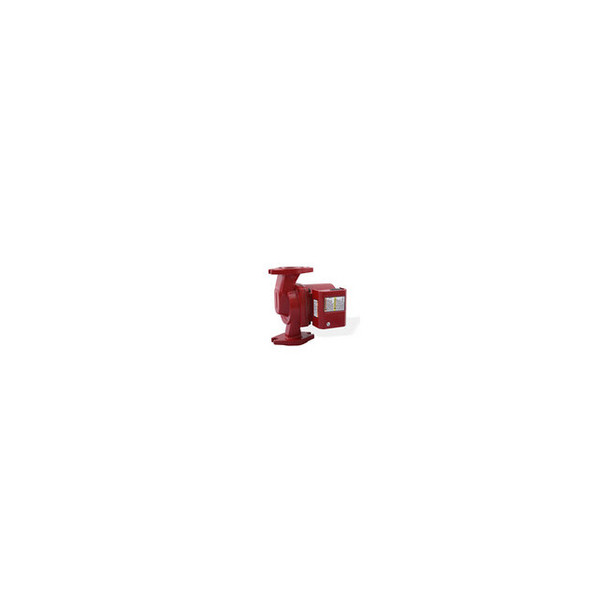

Bell & Gossett Circulator Pump NRF-22 MET-378

Circulator Pump; Type 1-Speed, In-Line, Wet Rotor, Horizontal; Suction Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch; Discharge Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch; End Connection Flanged x Flanged; Overall Dimensions 6-3/16 Inch Length x 5-1/8 Inch Width x 6-3/8 Inch Height; Flow Rate 0 to 22 GPM; Discharge Head 0 to 15 Foot; Casing Material Cast Iron; Shaft Material Ceramic; Impeller Material Noryl; Impeller Design Closed Loop; Warranty 3 Year from the Date of Manufacture/18 Month from Date of Installation; Power Rating 92 Watt; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 0.8 Amp; Speed Rating 2940 RPM; Temperature Rating 240 Deg F; Pressure Rating 150 PSI; Motor Type Lubricated, Thermally Protected; Inclusions/Features Double Sintered Carbon Bearing, Axial Flange, Impedance Protected; Exclusions Flange; Application Hydronic Heating System, Residential, Light Commercial; Applicable Standard UL (Canada and US), CSA, ISO 9001, CUL
