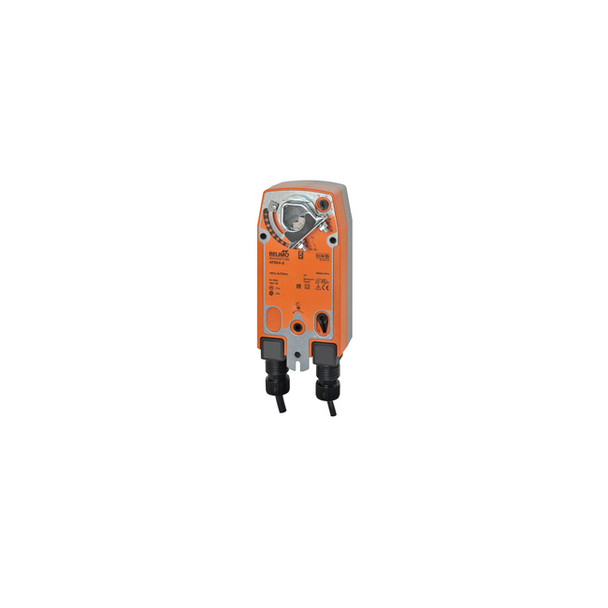

Belimo Damper Actuator AFB24-S MET-235360

Damper Actuator; Type ON/OFF, Direct Coupled; Operation Type Spring Return; Voltage Rating 24 Volt AC/DC; Maximum AC Voltage 24 Volt; Maximum DC Voltage 24 Volt; Frequency Rating 50/60 Hertz; Power Rating 5 Watt (Running), 2.5 Watt (Holding); Torque 180 Inch-Pound; Angle of Rotation 95 Degree; Enclosure NEMA 2, IP54; Size 3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height; Shaft Diameter 1/2 to 1.05 Inch; Supply Connection Size 3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector; Body Material Zinc Coated Metal, Plastic Casing; Operating Temperature -22 to 122 Deg F; Application HVAC System; Approval UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001; Includes 5 Millimeter Hex Crank, (2) SPDT Auxiliary Switch
