U.s. Motors
U.S. Motors D1P2AHC
- SKU:
- ZO-G0197805
- UPC:
- 786382111380
- MPN:
- D1P2AHC
- Condition:
- New
- Weight:
- 26.00 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
General Purpose Motor, Three-Phase, Open Air Over Motor Enclosure Design, 1 HP, Nameplate RPM 1,725, Frame 56HC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2-3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.3 Percent, Continuous Duty, 1701-1800, CSA, UL
View AllClose
Additional Information
Country of Origin: |
Mexico |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
Related Products
Related Products
U.S. Motors Refrigeration Condenser Fan, 1-3 hp 7232
U.s. Motors
MSRP:
$207.19
$191.41
HVAC Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.9 A A Full Load Amps, 48Y Frame, 60 Hz Hz, Replacement For Mfr. No...
U.S. Motors Agricultural Fan Motor, 56Y, 1-2 hp FD12BA2P9
U.s. Motors
MSRP:
$448.31
$414.15
Agricultural Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 56Y Frame, Usable @ 208V Not Usable...

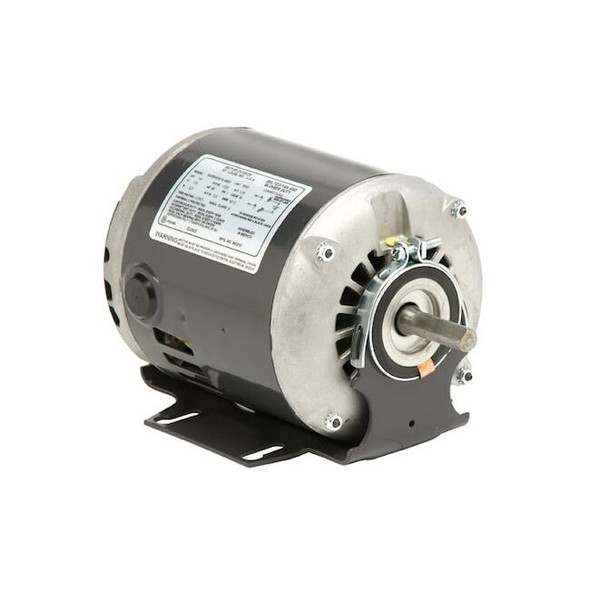

U.S. Motors D14B3N9
