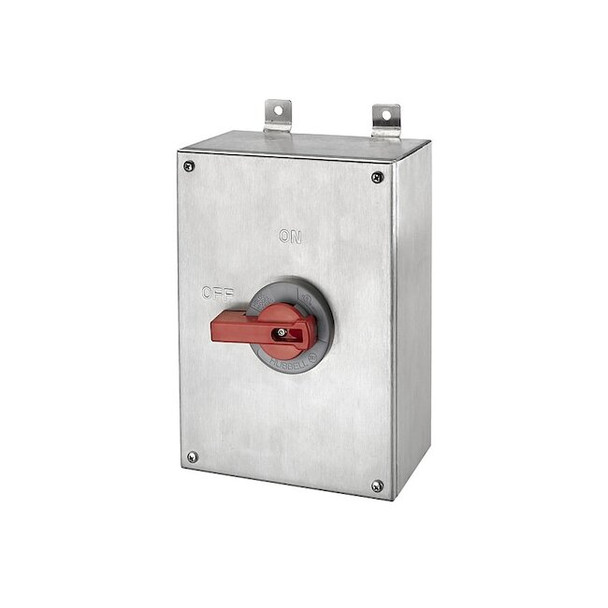

Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X HBLDS10SS

The HUBBELL Nonfusible Enclosed Disconnect Switch is a 3-pole manual disconnect switch rated for 100 A and up to 600V AC. Rated for indoor and outdoor use per NEMA Type 12K, 4, and 4X; IP54 ratings, it features a stainless steel enclosure with NEMA 12K, 4, and 4X ratings. This unit meets UL/CSA standards as a manual motor controller listed as a motor disconnect per UL/CSA standards; certified for use as a motor disconnect per NEC section requirements.Key Features of the HUBBELL Nonfusible Enclosed Disconnect Switch: Current Rating: Rated for up to 100 A at 600V ACPole Configuration: Three poles (3PST) with five wiresEnclosure Material: Enclosure material: 304 stainless steelNEMA & IP Ratings: NEMA Type 12K, 4, and 4X; IP54 rated for indoor/outdoor useHorsepower Capacity: Rated for motors up to 50 hp at 600V ACNonfusible Protection Method: Nonfusible disconnect switchConduit Openings: Includes two field-installed conduit hubs (1-1/4 in standard size)Mounting Method: Fixed feet mounting designOperating Temperature Range: -40°C minimum to +75°C maximum continuous operation without impactIndustry Standards: UL Listed; CSA certified as suitable for use as a motor disconnect per NEC section requirements
