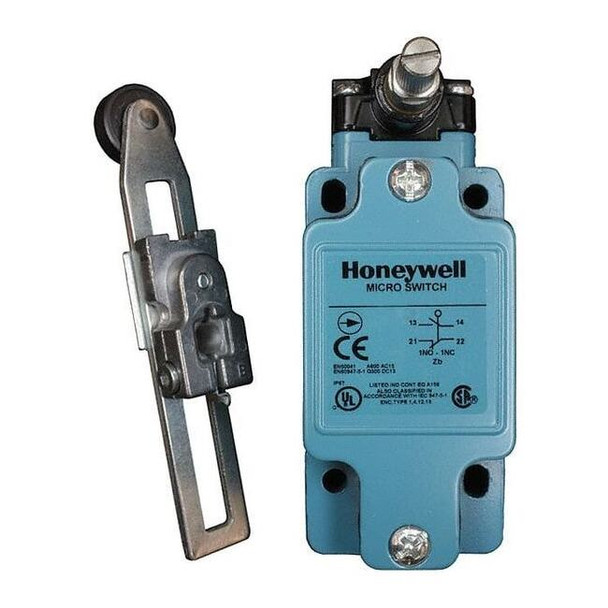

Limit Switch - GLA Series, Rotary Roller Lever, 2NC-2NO, IP67, NEMA 4 GLAA20A2A

Honeywell's MICRO SWITCH GLA Series Limit Switch is a general purpose rotary limit switch rated for use in applications requiring compliance with EN50041 specifications. It features a modular design allows for multiple configurations based on application requirements. The unit has a die-cast zinc housing and side-mounted rotary roller lever actuator with spring return action. Key features: - Contact configuration: 2NC/2NO (DPDT) - AC rating: 10A at 600V; DC rating: 10A at 250V - Actuator style: Side rotary roller lever, adjustable arm length from 1.50" to 3.60" - Body dimensions: Height 3.23", width/depth 1.65" - Operating temperature range: -13°F to 185°F - Mounting style: Surface mount with four-hole rectangular pattern (0.21" dia holes) - Electrical connection via screw terminals; wiring entry is threaded (1/2 in NPT) - Roller diameter: 0.75", nylon material - Movement direction: CW or CCW; operating force of 2.9 in-lb - Enclosure ratings: NEMA types 1, 4, 12, and 13; IP67 rated - Standards met include CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
