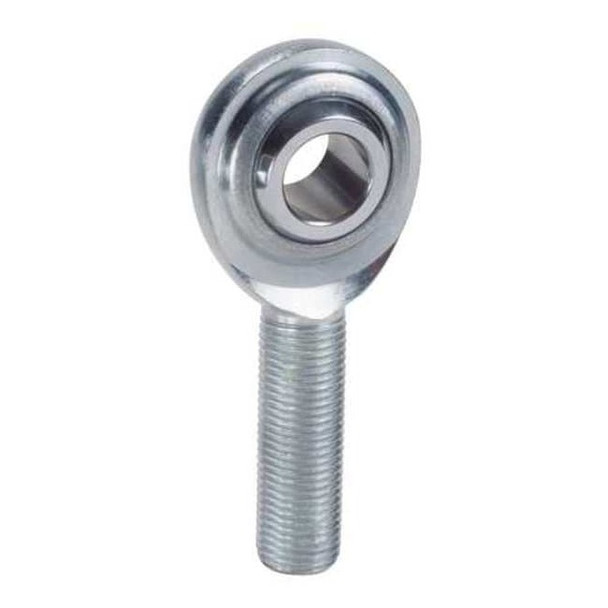

Qa1 Male Rod End,RH,8 mm Bore,M8-1.25 MCMR8
Qa1 Male Rod End,RH,8 mm Bore,M8-1.25 MCMR8
$12.95 Our price
$14.01
Retail Price
FREE Shipping
| Current Stock: | 397 |
| Brand: | Qa1 |
| Mpn: | MCMR8 |
| UPC: | 806990016249 |
| Shipping: | Free Shipping |
| SubCategory: | Power Transmission |
| International Shipping: | No |
| Color: | Brown |
| Lead Time: | Expected to ship in 1-2 business days |
| Material: | Carbon Steel |
Description
Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 25 mm, Shank Thread Size M8x1.25, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees , Overall Length 53.1 mm
