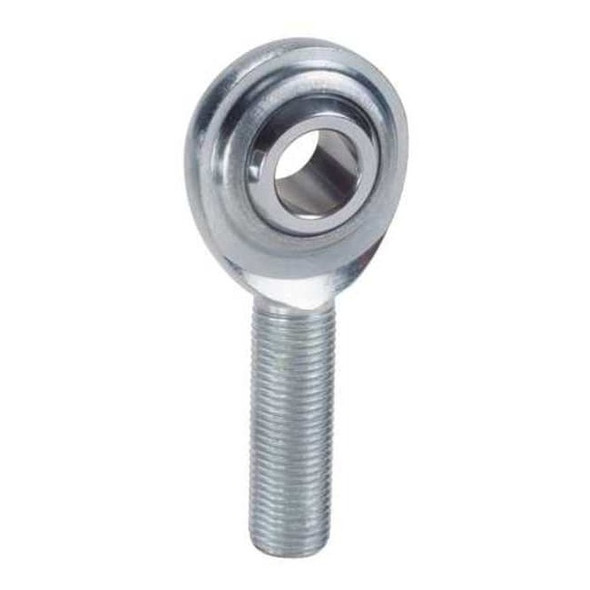

Qa1 Male Rod End,RH,16 mm Bore,M16-2 MCMR16
Qa1 Male Rod End,RH,16 mm Bore,M16-2 MCMR16
$26.44 Our price
$28.62
Retail Price
FREE Shipping
| Current Stock: | 97 |
| Brand: | Qa1 |
| Mpn: | MCMR16 |
| UPC: | 806990016409 |
| Shipping: | Free Shipping |
| SubCategory: | Power Transmission |
| International Shipping: | No |
| Color: | Silver |
| Lead Time: | Expected to ship in 1-2 business days |
| Material: | Carbon Steel |
Description

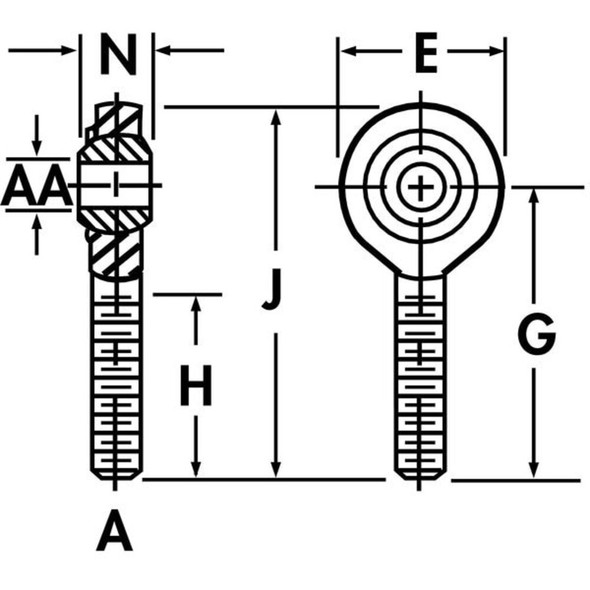

Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16x2.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees , Overall Length 85 mm
