Qa1

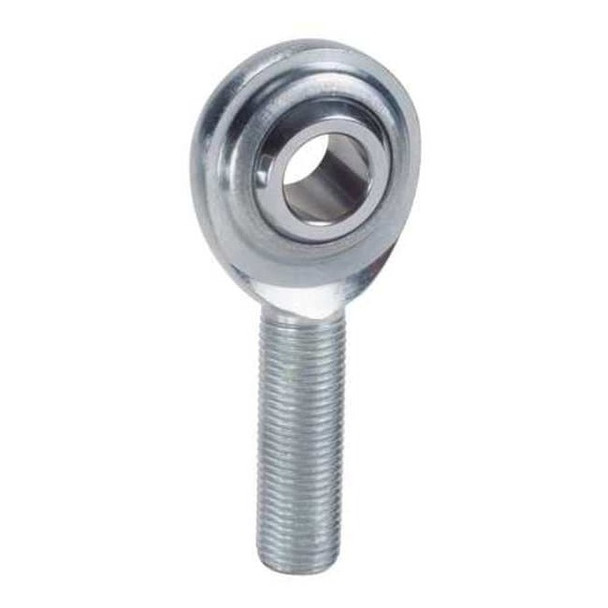

Qa1 Male Rod End,RH,5-8-18 CMR10
- SKU:
- ZO-G4968801
- UPC:
- 806990001771
- MPN:
- CMR10
- Condition:
- New
- Weight:
- 0.35 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 5/8 in, Head Outside Diameter 1 1/2 in, Head Width 0.484 in, Shank Thread Length 1 5/8 in, Shank Thread Size 5/8 In.-18, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 1.125 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.75 in, Maximum Ball Swivel 26 Degrees
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Color: |
Silver |
Lead Time: |
Expected to ship in 1-2 business days |
Material: |
Carbon Steel |
