Qa1
Qa1 Male Rod End,LH,No 10-32 CML3
- SKU:
- ZO-G0104049
- UPC:
- 806990001825
- MPN:
- CML3
- Condition:
- New
- Weight:
- 0.03 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 3/4 in, Shank Thread Size #10-32, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.312 in, Maximum Ball Swivel 20 Degrees
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Color: |
Silver |
Lead Time: |
Expected to ship in 1-2 business days |
Material: |
Carbon Steel |
Related Products
Related Products
Qa1 Male Rod End,Nylon-PTFE,LH,No 10-32 NML3
Qa1
MSRP:
$10.66
$9.85
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.25 in, Shank Thread Length 3/4 in, Shank Thread Size #10-32, Housing Material Carbon...

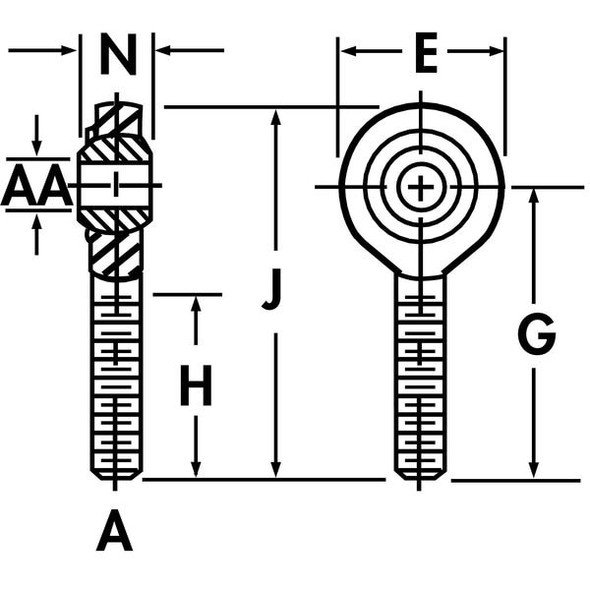

Qa1 Male Stud Rod End,Nylon-PTFE,LH,No 10-32 NML3S
Qa1
MSRP:
$13.05
$12.05
Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 in, Ball Stud Thread Length 3/8 in, Ball Stud Thread Size #10-32, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head...
Qa1 Male, Rod End, LH, 10-10.065mm MCML10
Qa1
MSRP:
$18.70
$17.27
Spherical Rod End, System of Measurement Metric, Bore Diameter 10 mm, Head Outside Diameter 27 mm, Head Width 9.5 mm, Shank Thread Length 29 mm, Shank Thread Size M10x1.5, Housing Material Carbon...

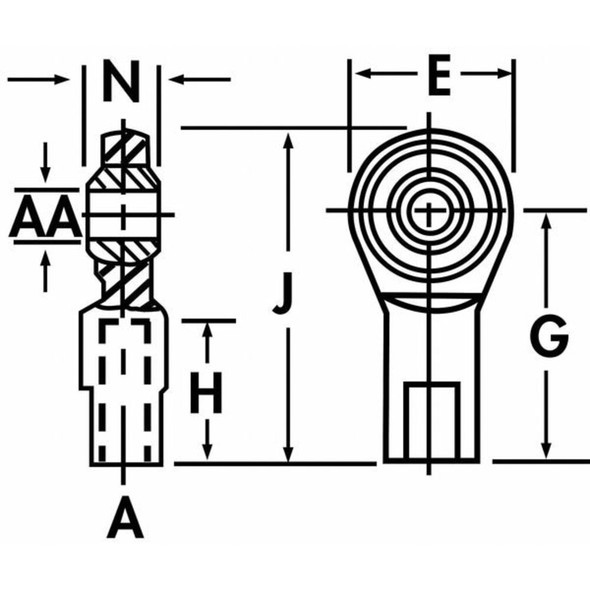

Qa1 Female Rod End,LH,No 10-32 CFL3
