Qa1
Qa1 Female, Rod End, LH, 12-12.065mm MCFL12
- SKU:
- ZO-G0100479
- UPC:
- 806990016331
- MPN:
- MCFL12
- Condition:
- New
- Weight:
- 0.26 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Metric, Bore Diameter 12 mm, Head Outside Diameter 30 mm, Head Width 10.75 mm, Shank Thread Length 24 mm, Shank Thread Size M12x1.75, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 22.23 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 16 mm, Maximum Ball Swivel 27 Degrees , Overall Length 65 mm
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Color: |
Silver |
Lead Time: |
Expected to ship in 1-2 business days |
Material: |
Carbon Steel |
Related Products
Related Products
Qa1 Female Stud, Rod End, LH, 28.5mm MCFL12S
Qa1
MSRP:
$28.07
$25.93
Rod End, System of Measurement Metric, Ball Stud Center Length 57.38 mm, Ball Stud Thread Length 24.5 mm, Ball Stud Thread Size M12x1.75, Bore Diameter 12 mm, Head Outside Diameter 30 mm, Head Width...

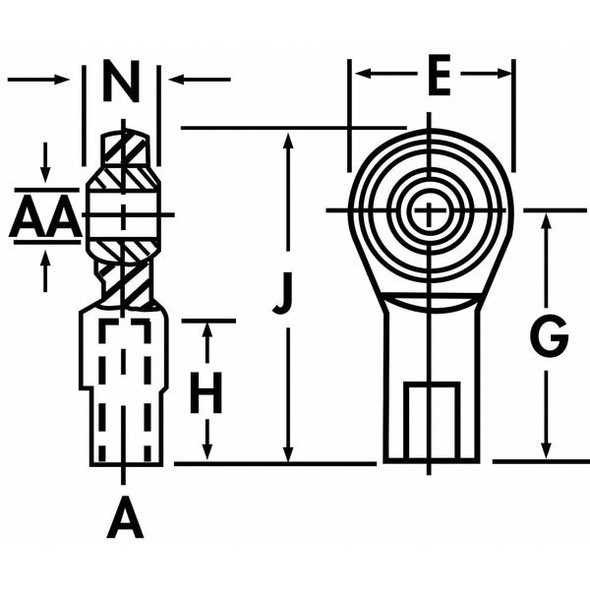

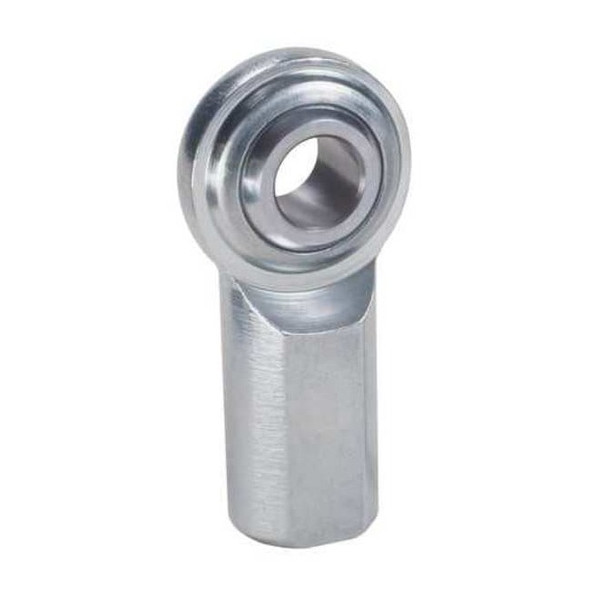

Qa1 Female Rod End,LH,No 10-32 CFL3
Qa1
MSRP:
$12.87
$11.89
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 1/2 in, Shank Thread Size #10-32, Housing Material Carbon...

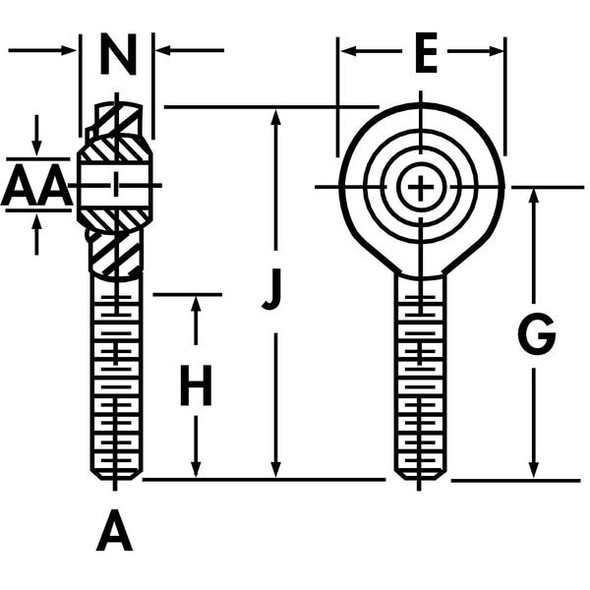

Qa1 Male,SS-PTFE Race Rod End,RH,12-12.065mm MGMR12T
