Qa1
Qa1 Female Rod End,LH,No 10-32 CFL3
- SKU:
- ZO-G3015166
- UPC:
- 806990002099
- MPN:
- CFL3
- Condition:
- New
- Weight:
- 0.03 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 1/2 in, Shank Thread Size #10-32, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.312 in, Maximum Ball Swivel 20 Degrees
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Color: |
Silver |
Lead Time: |
Expected to ship in 1-2 business days |
Material: |
Carbon Steel |
Related Products
Related Products

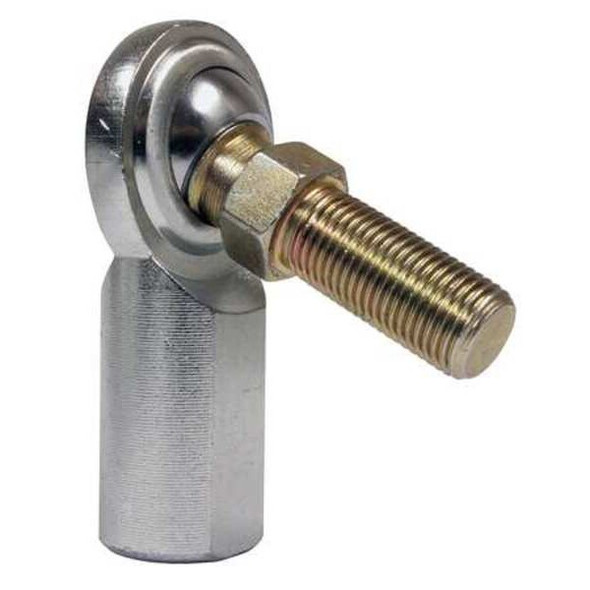

Qa1 Female Stud Rod End,LH,No 10-32 CFL3S
