Qa1

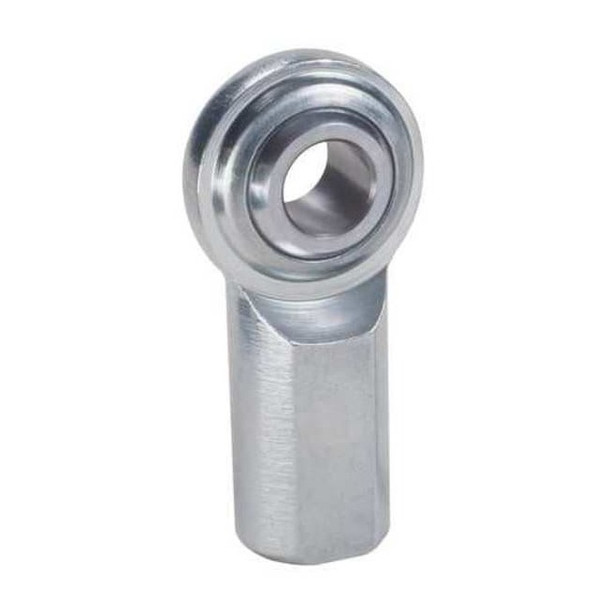

Qa1 Female Rod End,LH,5-16-24 CFL5
- SKU:
- ZO-G5201427
- UPC:
- 806990002112
- MPN:
- CFL5
- Condition:
- New
- Weight:
- 0.08 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.437 in, Maximum Ball Swivel 22 Degrees
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Color: |
Brown |
Lead Time: |
Expected to ship in 1-2 business days |
Material: |
Carbon Steel |
