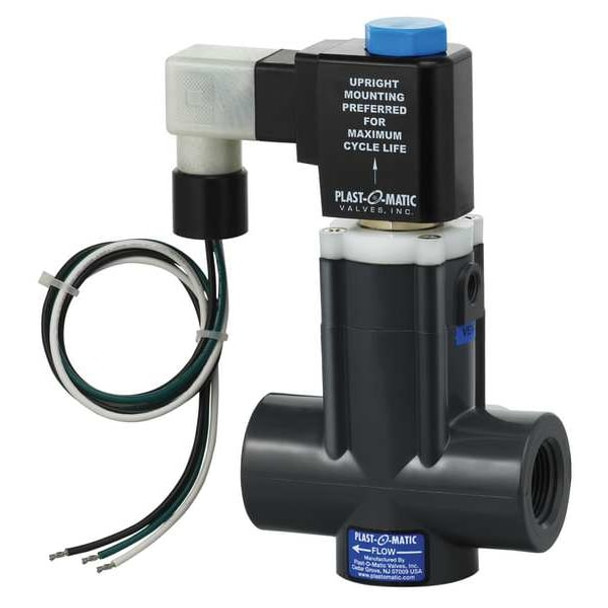

Plast-O-Matic EASMT4V12W24-120-60-PP

The PLAST-O-MATIC EASMT4V12W24-120/60-PP is a 2-way, 2-position solenoid valve with a normally closed, direct acting design. Fluid compatibility limited to substances compatible with polypropylene body and seals; operating temperature up to 180°F. The valve is compatible with fluid temperatures up to 180°F and operates at a maximum ambient temperature of 122°F. It is intended for indoor and outdoor use with an IP65 and NEMA 4 enclosure rating, allowing for horizontal or vertical mounting orientations. The valve includes a seal and is supplied with the coil and sealing components needed for installation. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed, Direct Acting - Body Material: Polypropylene - Seal Material: - Orifice Diameter: 3/8 in - Nominal Pipe Size: 1/2 in NPT inlet and outlet connections - Maximum Flow Rate: 3.4 gpm - Operating Temperatures: Fluid up to 180°F; Ambient up to 122°F - Electrical: 120 VAC, 60 Hz, 24 W coil with wire lead connections - Enclosure: Without junction box, watertight coil enclosure; IP65 and NEMA 4 rated - Mounting Orientation: Horizontal or Vertical - Includes coil and seals for installation - Environmental Rating: Indoor and Outdoor use - Coefficient of Volume (Cv): 2
