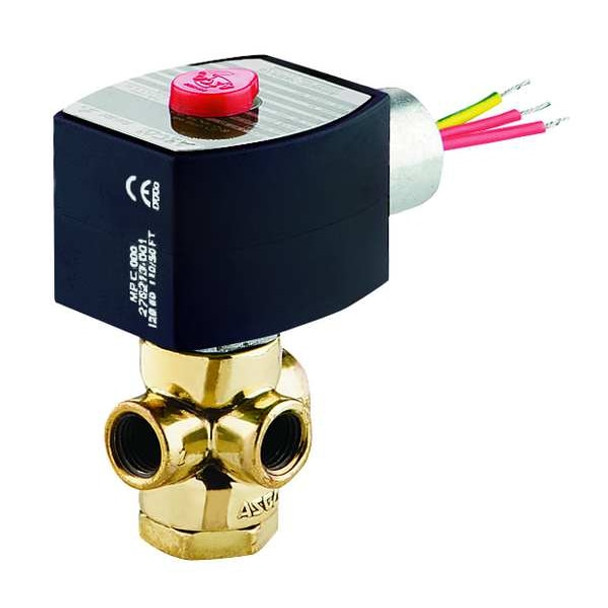

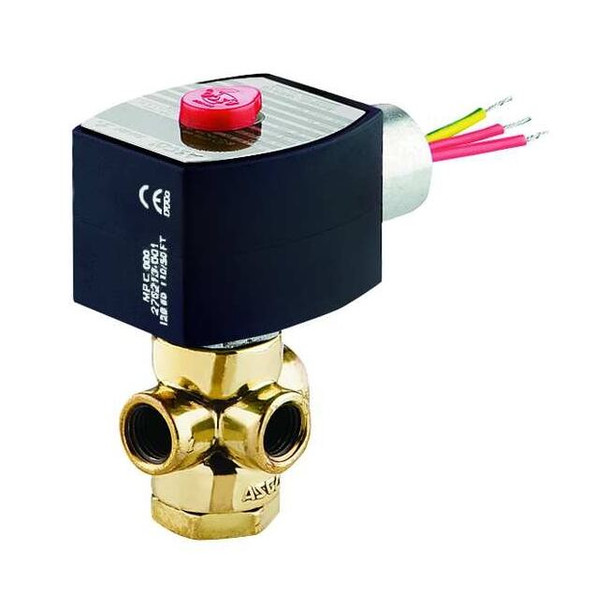

Asco 8320G182

Direct-acting, normally closed solenoid valve; fluid compatibility: air, inert gas, light oil, and water; maximum media temperature: 200°F; 3-way, 2-position configuration; nominal pipe size: 1/4 in (NPTF inlet/outlet). Nominal voltage: 12 V DC; coil and seal provided per specification. Key Features: - Valve Type: Direct Mount, Direct Acting - Position and Operation: 3-Way, 2-Position, Normally Closed - Materials: Brass body, NBR seal material - Electrical: 12V DC, 17.1 W wattage, 1/2 in conduit with 18 in leads - Fluid Compatibility: Air, Inert Gas, Light Oil, Water - Pressure Ratings: Maximum differential 210 psi Air/Inert Gas, 225 psi Light Oil and Water; minimum differential 0 psi for all - Orifice Diameter: 1/16 in - Sizes and Dimensions: Nominal pipe size 1/4 in; center line pipe center size 2-3/4 in; overall dimensions approximately 3 in length, 2 in width, 3-3/4 in height - Environmental ratings: IP66; enclosure classes: NEMA 1, 2, 3, 3S, 4, 4X; operation indoors and outdoors defined by these ratings - Coil Insulation Class: F - Mounting Orientation: Horizontal or Vertical - Includes: Coil and seal components
