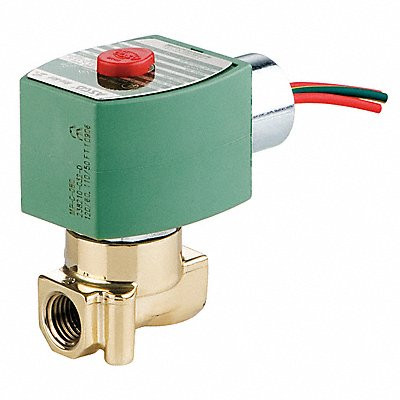

Asco 8262H002

The ASCO 8262H002 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. Constructed with a brass body and NBR seals, it controls the flow of air, inert gas, light oil, and water. Operating temperature range: -13°F to 131°F ambient; up to 180°F fluid temperature. Designed for horizontal or vertical mounting, it includes an coil and features NPTF inlet and outlet connections with a 1/8 in orifice diameter and a nominal pipe size of 1/8 in. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Operation Type: Direct Acting - Body Material: Brass - Seal Material: NBR - Media Compatibility: Air, Inert Gas, Light Oil, Water - Operating Temperature Range: -13°F to 131°F ambient; up to 180°F fluid temperature - Pressure Differentials: Maximum 130 psi for air/inert gas, 95 psi for light oil, and 110 psi for water; minimum 0 psi for all listed media - Electrical: 12V DC voltage, 10.6 W wattage, electrical connections via 1/2 in conduit with 18 in leads - Enclosure and Ratings: Coil enclosure watertight; IP66 and NEMA 1, 2, 3, 3S, 4, 4X - Dimensions: Overall length 1-3/16 in, width 1-11/16 in, height 2-27/32 in - Additional: Includes coil and seal; response time approximately 1 second
