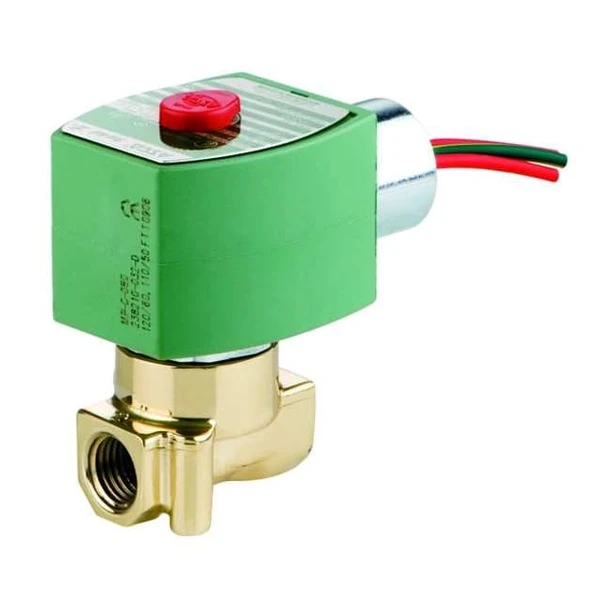

Asco 8262H001

The ASCO 8262H001 is a 2-way, 2-position solenoid valve featuring a normally closed, direct acting design. Fluid compatibility: Air, Inert Gas, Light Oil, Water. Maximum fluid temperature: 180°F. Response time: 1 second. The valve allows for either horizontal or vertical mounting orientations and includes the solenoid coil and necessary sealing components. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed configuration - Body Material: Brass construction - Operating Pressure Differential: 0 to 750 psi for air/inert gas and water; 0 to 725 psi for light oil - Fluid compatibility: Air, Inert Gas, Light Oil, Water - Maximum fluid temperature: 180°F - Ambient temperature range: -13°F to 131°F - Coil: Included; Insulation Class F; Power Consumption: 6.1 W - Electrical Connection: 1/2 in Conduit with 18 in Leads; Voltage: 120V AC, 60 Hz - Enclosure: Watertight coil enclosure with IP66 rating - Seal Material: NBR - Thread Type: NPT inlet and outlet connections (NPTF type) - Orifice Diameter: 1/16 in - Mounting Orientation: Horizontal or Vertical - Overall Dimensions: Length 1-3/16 in, Width 1-11/16 in, Height 2-27/32 in - Response time: 1 second - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
