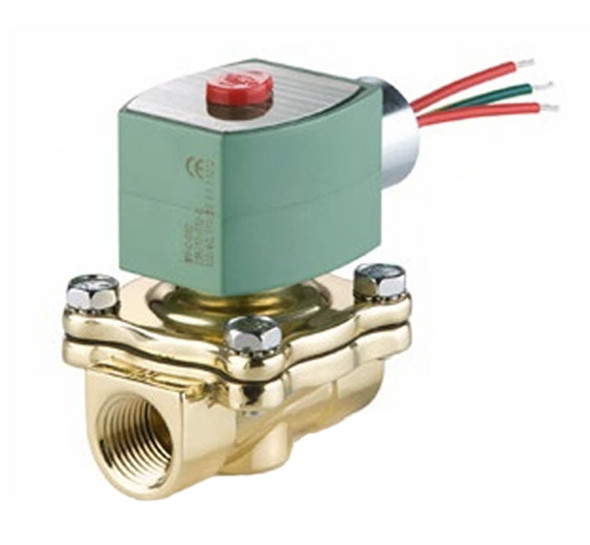

Asco 8210G095

The ASCO 8210G095 solenoid valve is a 2-way, 2-position pilot operated valve with a normally closed starting configuration. It features a brass body and includes the coil and sealing components necessary for operation. Designed for controlling the passage of air, inert gases, and water. The valve is intended for vertical mounting and can operate in ambient temperatures ranging from 14°F to 140°F, with fluid temperatures up to 180°F. Suitable for indoor and outdoor use; IP66-rated protection. Key Features: - Nominal Pipe Size: 3/4 in with NPT inlet and outlet connections (NPTF thread type) - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed configuration - Maximum differential pressure: 40 psi; differential pressure range: 0–40 psi - Valve Type: High Flow with an orifice diameter of 3/4 in and Cv value of 5 - Electrical: 24V DC, 10.1 W coil wattage; coil enclosure IP66-rated; no junction box required - Coil Insulation Class: F; Electrical connections via 1/2 in conduit hub - Dimensions: Overall height 4-1/8 in, length 2-13/16 in, width 2-5/16 in - Seal Material: NBR (Buna-N) - Environmental Ratings: Indoor, Outdoor with NEMA enclosure ratings 1, 2, 3, 3S, 4, 4X - Response Time: Approximately 1 second - Includes Coil and Seal
