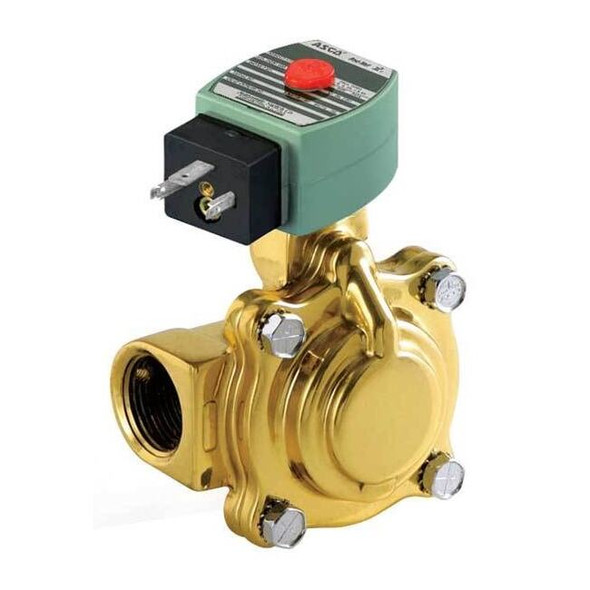

Asco 8210G054

The ASCO 8210G054 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, inert gas, light oil, and water. Constructed with a brass body, it features NPTF inlet and outlet connections with a 1-inch nominal pipe size and a 1-inch orifice diameter. This 2-way, 2-position valve provides automated flow control through an energized coil. Actuation: energized coil for remote operation. Environmental protection ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X and operates within an ambient temperature range of 14°F to 140°F, handling fluid temperatures up to 180°F. Key Features: - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed - Media Compatibility: Air, Inert Gas, Light Oil, Water - Body Material: Brass - Connection Types: Inlet and Outlet NPTF threaded, 1 in nominal pipe size - Operating Pressure Differential: Maximum 150 psi for air/inert gas; 125 psi for light oil and water; minimum 0 psi - Coil Included: Yes, 16.1 W power consumption, Class F insulation, 120V AC at 60 Hz frequency - Coil enclosure: IP66-rated; no external junction box required - Electrical Connections: 1/2 in Conduit Hub - Mounting Orientation: Vertical - Dimensions: Overall length 3-3/4 in, width 3-1/4 in, height 5-1/8 in - Response Time: 1 second - Seal Material: NBR (Buna-N) - Environmental protection ratings: IP66; NEMA 1, 2, 3, 3S, 4, 4X - Includes Seal: Yes - Standards: UL Listed
