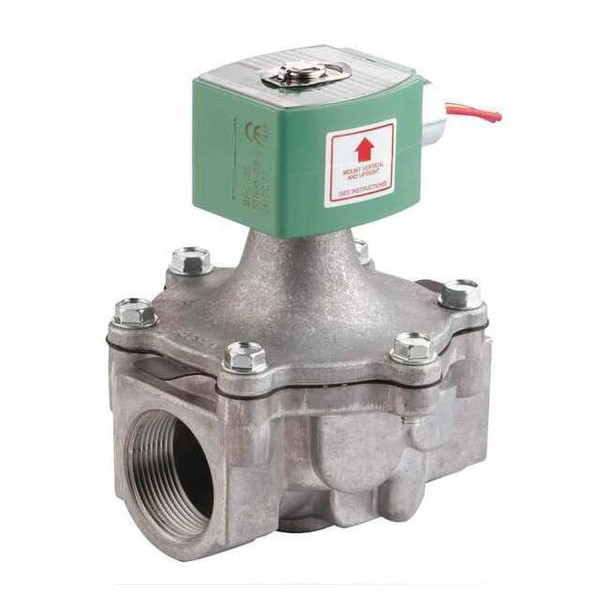

Asco 8215G080-24-DC

The ASCO 8215G080-24/DC is a direct-acting, 2-way/2-position solenoid valve designed for controlling fuel gas flow in commercial and industrial gas burners. It features a normally closed starting configuration and includes the coil and sealing components necessary for operation. The valve body is made of aluminum and it operates at 24 V DC with a wattage of 15.8 W. Media compatibility: Fuel Oil, Gas; fluid temperatures up to 104°F and ambient temperatures ranging from 14°F to 140°F. Flow capacity: Cv 60; Orifice diameter: 2-3/32 in enables controlled on-off operation. Key Features: - Valve Design: 2-Way/2-Position, normally closed - Valve Type: High Flow - Operation Type: Direct Acting - Media Compatibility: Fuel Oil, Gas - Body Material: Aluminum - Orifice Diameter: 2-3/32 in - Nominal Pipe Size: 2 in - Inlet and Outlet Connection Type: NPTF with NPT thread type - Maximum Operating Pressure Differential: 15 psi for Air/Inert Gas and Water - Electrical: 24 V DC, 15.8 W coil wattage, 60 Hz frequency - Coil Enclosure: Watertight with Junction Box - Electrical Connections: 1/2 in Conduit with 18 in Leads - Coil Insulation Class: F - Seals: Includes NBR seal material - Response Time: 120 msec - Dimensions (L x W x H): 6-1/8 in x 6-13/32 in x 7-5/16 in - IP Rating: IP65 - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X - Includes coil and seal - Certified to UL and CSA standards for safety shutoff
