Asco 8215G060-12-DC

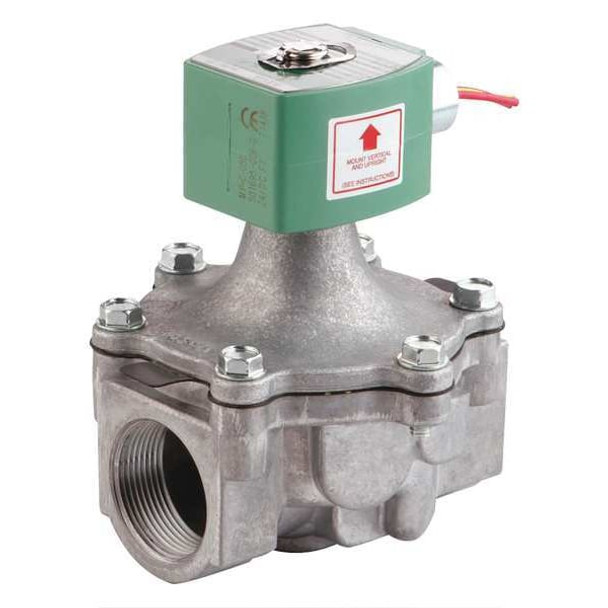

The ASCO 8215G060-12/DC is a direct-acting, normally closed solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a 2-way, 2-position valve design with a high-flow valve type that provides gas-flow control within the specified on/off operating range. The valve operates on 12V DC power with a coil wattage of 15.8 W and includes the coil and seal necessary for installation. Body Material: Aluminum; Seal Material: NBR; Media compatibility: Fuel oil and gas; Operating differential: 0 to 25 psi (air/inert gas); 0 psi (water); Ambient temperature range: 14°F to 140°F; Fluid temperature maximum: 104°F Key Features: - Valve Design: 2-Way/2-Position, Normally Closed - Operation Type: Direct Acting - Voltage: 12V DC - Wattage: 15.8 W - Coil Enclosure: With Junction Box, Watertight - Coil Insulation Class: F - Includes: Coil and Seal - Media: Fuel Oil, Gas - Body Material: Aluminum - Seal Material: NBR - Nominal Pipe Size: 1-1/4 in - Orifice Diameter: 1-5/8 in - Coefficient of Volume (Cv): 32 - Operating Pressure Differential: 0 to 25 psi Air/Inert Gas; 0 psi Water - Ambient Temperature Range: 14°F to 140°F - Fluid Temperature Maximum: 104°F - Electrical Connections: 1/2 in Conduit with 18 in Leads - Environmental Rating: Hazardous, Indoor, Outdoor - IP Rating: IP65 - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X - Thread Type: NPT (Inlet/Outlet Connection Type: NPTF) - Overall Dimensions: Height 6-23/32 in; Length 5 in; Width 5-13/32 in - Response Time: 120 msec
