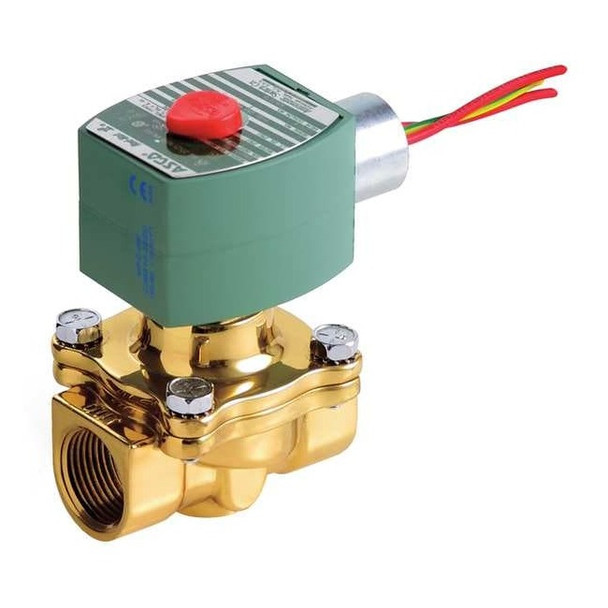

Asco 8210H106B

The ASCO 8210H106B solenoid valve is a pilot-operated, 2-way, 2-position valve featuring a normally closed starting configuration. Constructed with a brass body and equipped with NBR seals, this valve controls the flow of fuel oil and gas media with a flow coefficient (Cv) of 3.6 through a 5/8-inch orifice diameter. It is designed for use with petroleum gases such as propane and has an operating pressure differential range from 5 psi minimum up to 350 psi for air/inert gas and 25 psi for water. This valve operates at 120V AC and 60 Hz frequency and comes with a coil included, rated for 17.1 watts power consumption and Class F coil insulation for thermal endurance. Key Features: - Valve Design: 2-Way/2-Position, pilot operated - Body Material: Brass - Seal Material: NBR - Orifice Diameter: 5/8 in - Flow Coefficient (Cv): 3.6 - Nominal Pipe Size: 1/2 in with NPT inlet and outlet connections - Operating Pressure Differential: 5 psi minimum; 350 psi max air/inert gas, 25 psi max water - Operating Temperature Range: -20°F to 125°F ambient; fluid max 125°F - Electrical: 120V AC, 60 Hz; 17.1 W coil power; coil enclosure: watertight; IP rating not specified, general purpose without junction box - Electrical Connections: 1/2 in conduit hub - Mounting Orientation: Vertical - Valve Starting Configuration: Normally Closed - Response Time: 1 second - Environmental usage: indoor and outdoor environments - Dimensions: Overall length 3-7/16 in; height 3-15/16 in; width 2-9/32 in - Includes: Coil and seals - Certifications: CSA, FM, UL
