Manufacturer Varies 2UA57

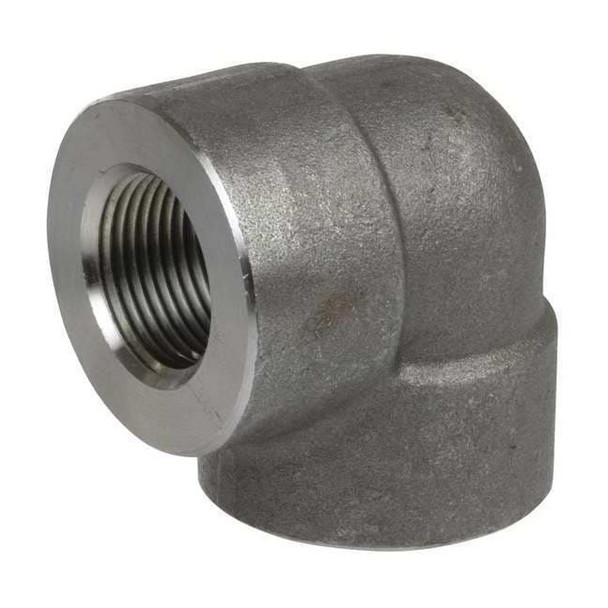

The ZORO SELECT - 2UA57 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change the direction of flow. Constructed from 304 stainless steel; suitable for high-pressure applications within specified pressure and temperature ranges. This fitting features female FNPT threaded connections on both ends, each sized at 1/2 inch nominal pipe size with 14 threads per inch using NPT threading. It is rated for use within specified pressure and temperature parameters; actual performance may vary based on installation and operating conditions. It is pressure rated to Class 3000, with a maximum pressure capacity of 3000 psi at 100 degrees F and a maximum steam pressure of 2500 psi at 350 degrees F. Key Features: - Material: 304 Stainless Steel, conforming to ASTM-A-182 standard. - Shape: 90 Degree Elbow, providing a right-angle flow change. - Connection Type: Female NPT (FNPT) threaded ends on both sides. - Nominal Pipe Size: 1/2 inch on both connections. - Threading: 14 threads per inch with ANSI/ASME B1.20.1 threading standard. - Pressure Class: Class 3000, suitable for high-pressure use. - Maximum Pressure: 3000 psi at 100°F. - Maximum Steam Pressure: 2500 psi at 350°F. - Meets ASME B16.11 standards for pipe fittings. - Does not include pre-applied thread sealant or additional seals.
