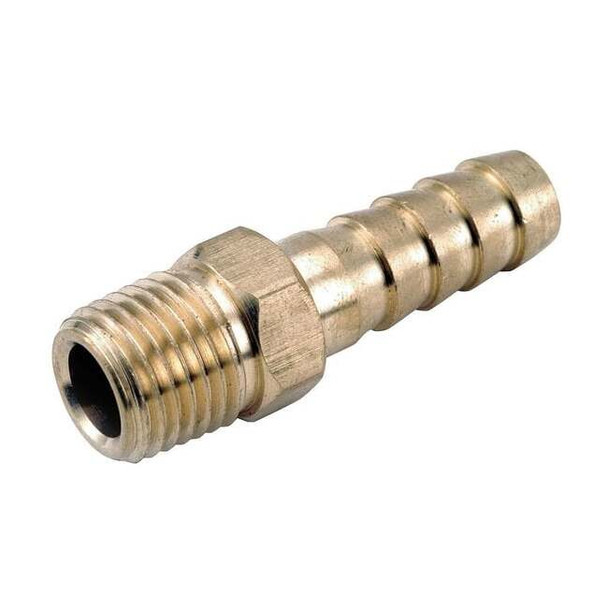

Barbed Hose Fitting, 5-16" Tube OD, 3-8 in Pipe Size, Brass 707001-0506

The ZORO SELECT - 707001-0506 is a straight-shaped Barbed Hose Fitting intended for industrial or commercial applications. Crafted from brass, it is engineered for a rigid connection that helps minimize unwanted movement. The fitting features a male hose barb connection type on both sides, measuring 5/16 in on one end and 3/8 in on the other end. Please note that this fitting does not include a shut-off mechanism and is reusable. It meets all standards of quality and safety as outlined by the NSF 61 ANNEX G. Key Features: Barb Size: 5/16 in – this refers to the area of the fitting that connects to the hose. Hex Head Size: 11/16 in – this indicates the size of the hexagonal head of the fitting. An appropriate wrench or socket is needed to tighten or loosen the fitting. Max. Pressure: 1000 psi – this is the maximum internal operating pressure that the fitting is rated for. Pipe Size: 3/8 in – this represents the nominal diameter of the fitting's pipe connection. Temperature Range: -65 Degrees to 250 Degrees F – the fitting is rated for operation within this temperature range. Thread Size: 3/8"-18 – shows the size of the threading on the fitting. Tube Size: 5/16” – this indicates the fitting's nominal hose connection diameter. Material Grade: CA2745 – identifies the specific alloy/grade of the brass material used.
