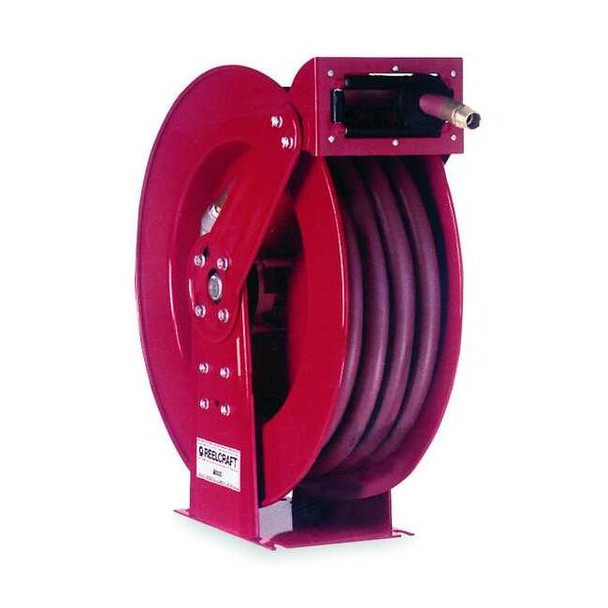

Reelcraft 81100 OLP

REELCRAFT 81100 OLP is a spring return hose reel for air and water service that includes a 3/8 in. I.D. x 100 ft PVC hose. It uses a dual pedestal, open-frame steel reel with a stationary base and can be mounted on a bench or truck, ceiling, floor, or wall. The reel has a locking, spring-loaded latch, a 1/2 in. FNPT inlet that can be connected from either side, and a 3/8 in. MNPT hose outlet. It is rated for a maximum operating pressure of 300 psi and a maximum operating temperature of 150 degrees F. Key Features: Spring return drive: Retracts the hose back onto the reel using spring-powered rewind. Included hose: Comes with a red 3/8 in. I.D. x 100 ft PVC hose for air and water applications. Mounting options: Designed for bench and truck, ceiling, floor, or wall mounting. Dual pedestal steel construction: Carbon steel reel with steel base, upright, guide arm, and spool. Powder-coated finish: Coated steel components provide a corrosion- finish. Ball bearing design: Two permanently lubricated, sealed ball bearings support smooth reel rotation. Adjustable guide arm: Guide arm can be set in 4 different positions to suit installation layout. Connection sizes: Reel inlet is 1/2 in. FNPT; hose fittings are 3/8 in. male NPT brass. Latch mechanism: Spring-loaded locking latch holds the hose at the selected length. Operating range: Rated for 300 psi, with an operating temperature range of 32 to 150 degrees F. Overall size: Measures 24 in. L x 10 1/2 in. W x 25 3/8 in. H.
