Dayton

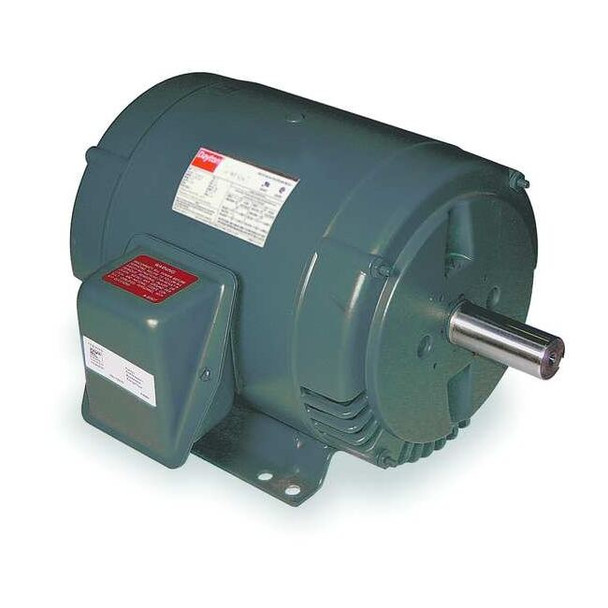

Dayton Mtr, 3 Ph, 3 HP, 1755, 208-230-460V, 182T, ODP 6XWJ0
(No reviews yet)
Write a Review
- SKU:
- ZO-G3557102
- UPC:
- 190735373644
- MPN:
- 6XWJ0
- Condition:
- New
- Weight:
- 77.30 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 8.5-8.0/4.0 A Full Load Amps, 182T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
View AllClose
Additional Information
Country of Origin: |
United States |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
Related Products
Related Products

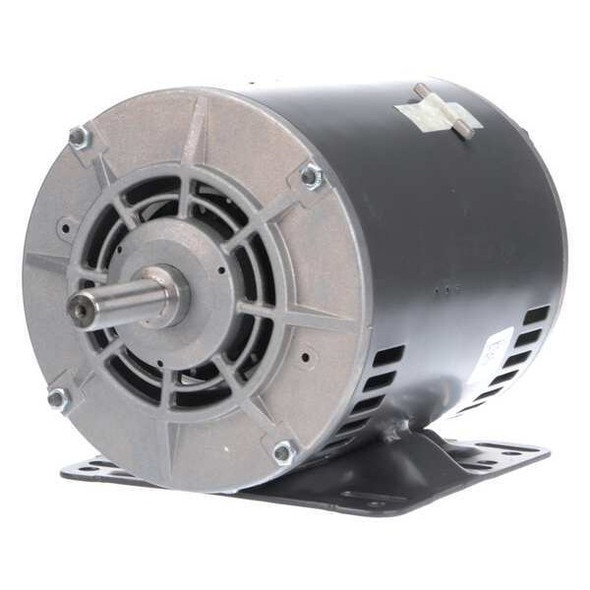

Dayton Mtr, 3 Ph, 1.5 HP, 1725, 208-230-460, 56H, ODP 4YU39
Dayton
MSRP:
$418.17
$386.31
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.8-4.8/2.4 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable...
Dayton Centrifugal Pump, 3 HP,3 Ph,208-230-460V 2YEU5
Dayton
MSRP:
$1,341.18
$1,239.01
Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 95 ft, Flow Rate (Maximum) 123 gpm, Horsepower (Maximum) 3 hp, Housing Material Polypropylene, Impeller...
Dayton Cast Iron 3 HP Centrifugal Pump 208-230-460V 2ZWR3
Dayton
MSRP:
$1,165.37
$1,076.59
Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 3 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 130 gpm, Flow Rate @ 60 ft of Head (Maximum) 82...

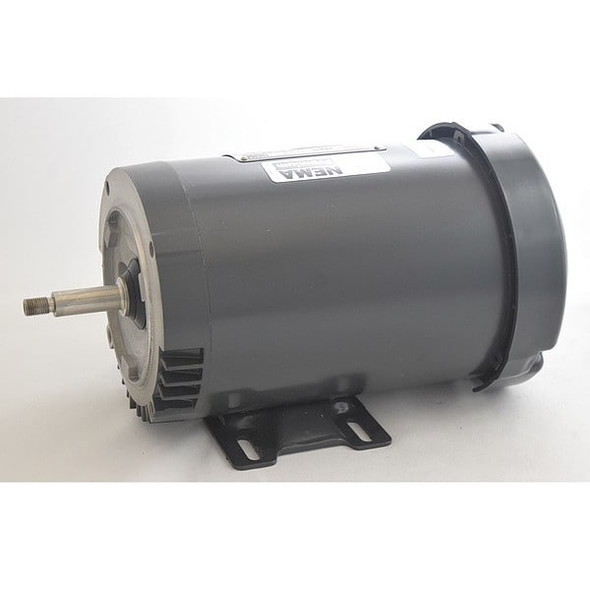

Dayton Motor,3-Ph,2 HP,208-230-460V,56J 21XU04A
