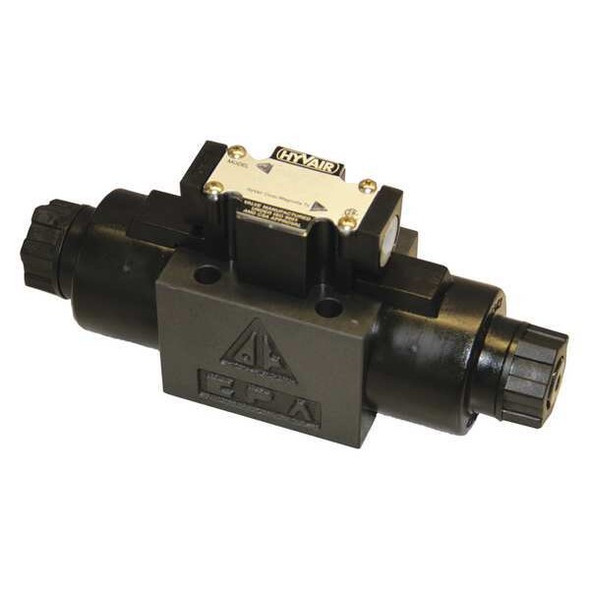

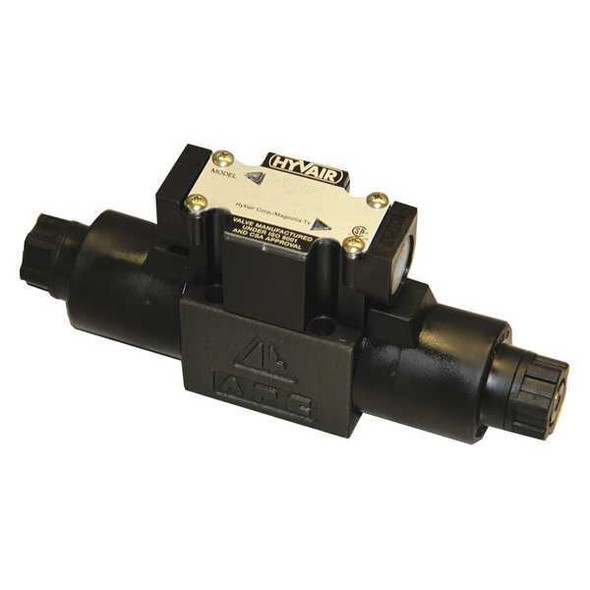

Chief Directional Valve,DO5,115VAC,Tandem D05S-2C-115A-35

Hydraulic Directional Valve, Flow Rate - Maximum 17 gpm, NFPA Size D05, Number of Positions Three Positions, Pressure - Maximum 5,000 psi, Valve Control Directional Control, Number of Ways Four-Way, Voltage 115V AC, Port Connections Tank, Center Position Tandem Center, Series DO5, Holding Current 1.1 A, Overall Height 4.29 in, Frequency 50/60 Hz, Inrush Current 5.5 A, Overall Length 9.43 in, Overall Width 2.76 in, Return Mechanism Spring, Seal Material Buna-N, Tank Pressure - Maximum 3,000 psi
