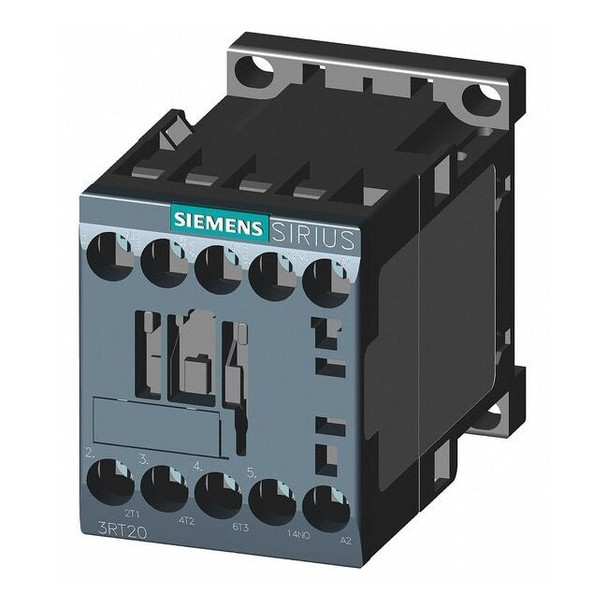

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Screw 3RT20181AP61

The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, coil-controlled switch rated for switching applications within specified parameters. It energizes with a 220–240 V AC coil and includes one normally open auxiliary contact (1NO). This unit is part of the SIRIUS 3RT20 series (Frame Size S00) and uses screw terminals for wiring. - Coil voltage: 220–240 V AC - Action: Non-Reversing - Poles: 3 - Auxiliary contacts: 1NO - Main contacts: 3 NO - Connection type: Screw - Mounting: DIN Rail, Surface - Enclosure: intended for use in environments consistent with IP20 ratings - Series/Frame: SIRIUS 3RT20, Frame Size S00 - Max voltage rating: rated for operation up to 690 V AC under specified conditions - Phase: Three - Frequency: 50/60 Hz - Full load amps: 16 A (inductive); 22 A (resistive) - Max operating temperature: 140 Degrees F - Min operating temperature: -13 Degrees F - Mechanical durability: tested for mechanical durability over specified cycle counts - Embedded surge suppressor: No - Mounting position: Vertical - Overall dimensions: 3.2 in depth x 2.4 in height x 1.95 in width - Includes auxiliary contacts: Yes - Reversing: No
