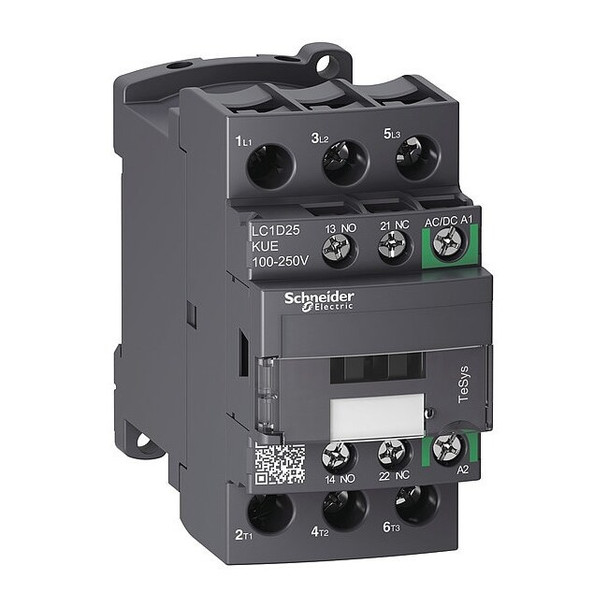

Schneider Electric LC1D25KUE

Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a 3-pole, non-reversing, electrically operated switch rated for use in motor control and resistive-load applications within specified parameters. It features a 100–250 V AC/DC coil, auxiliary contacts configured as 1NO/1NC (2 total), and screw clamp terminals. The unit is compatible with DIN rail or plate mounting according to installation instructions, and it includes a protective cover rated as IP20. Key features - Poles/contacts: 3 poles; 3 normally open main contacts; auxiliary contacts 1NO/1NC (2 total) - Coil and switching: Coil voltage 100–250 V AC/DC; non-reversing; 50/60 Hz - Voltage and making capacity: Voltage and making capacity: rated for operation at voltages up to 690 V AC/DC within specified conditions; rated making capacity 140 A (AC Signalling) / 250 A (DC Signalling) / 450 A @ 440 V (Power Circuit) - Currents and loads: Currents and loads: rated for resistive loads up to 40 A and inductive loads up to 25 A under specified conditions - Mechanical/electrical durability: Mechanical/electrical durability: mechanical durability of approximately 15 Mcycles; electrical durability based on standard testing within specified load ratings - Physical and mounting: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.433 kg; Mounting: DIN Rail, Plate; Mounts On Plate, Rail; Electrical connection: Screw Clamp - Enclosure and protection: IP20; Enclosure: Intended for use without an enclosure but includes a protective cover suitable for certain environments; Embedded surge suppressor: No - Standards and safety markings: Standards include UL Listed; EN/IEC 60947-4-1; EN/IEC 60947-5-1; CSA; CCC - Timing and control: Non-Overlap Time 1.5 ms; Operating times 45–55 ms (Closing), 20–90 ms (Opening)
