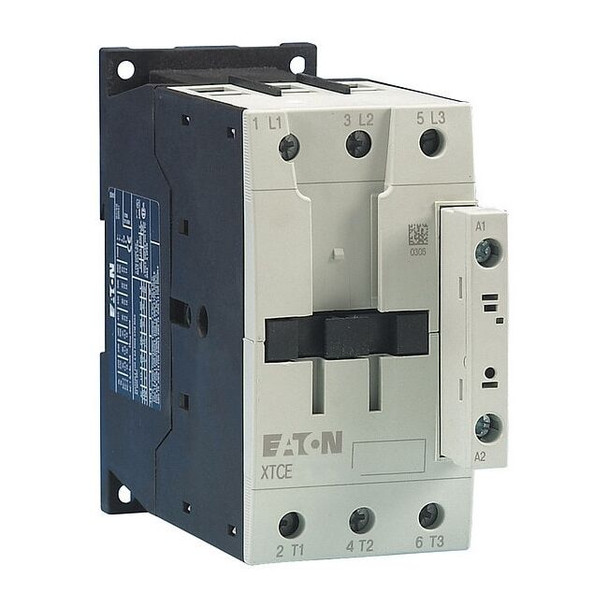

Eaton XTCE050D00C

The Eaton XT IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified IEC standards. It uses a 480V AC coil to operate with a 50A rating and has no auxiliary contacts. The device is a DIN Rail/Panel-mount IEC frame D contactor with screw terminals and no enclosure (NEMA No Enclosure), rated for operation at voltages up to 690V AC and frequencies of 50/60 Hz. It carries multiple certifications (IEC 60947; EN 60947; UL Listed; CSA Certified; CE Marked; RoHS) and is identified as Eaton XT IEC contactor. - Action: Non-Reversing - Number of Poles: 3 - Amperage Rating: 50A - Coil Voltage / Coil Volts: 480V AC - Aux. Contact Configuration / Form: No Auxiliary Contacts - Contact Configuration: 0 NO, 0 NC - Mounting Style: DIN Rail, Panel - Frame Size / Series: Frame D / XT - Termination: Screw Terminals - Enclosure: No Enclosure; IP20 - Maximum Voltage Rating: 690V AC - Embedded Surge Suppressor: Yes - Certifications / Standards: IEC 60947; EN 60947; UL Listed; CSA Certified; CE Marked; RoHS - Mechanical Durability: 10,000,000 cycles - Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) - Frequency: 50/60 Hz - Reversing: No
