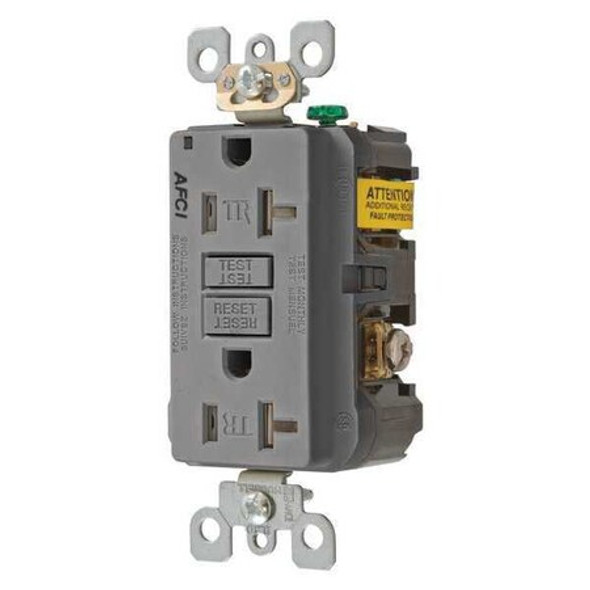

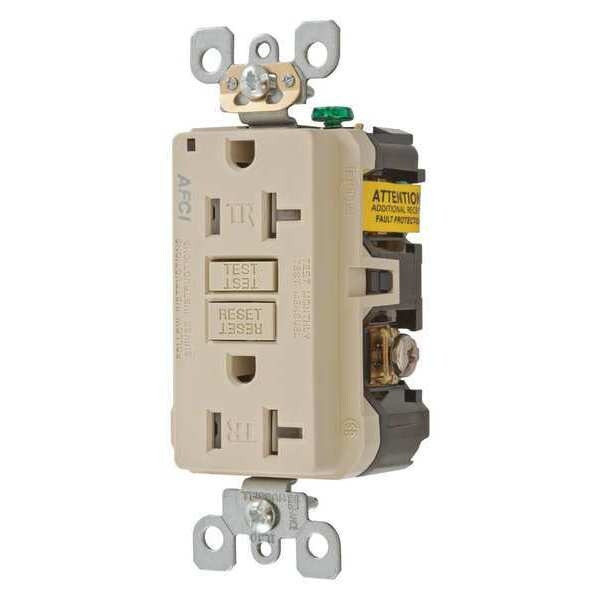

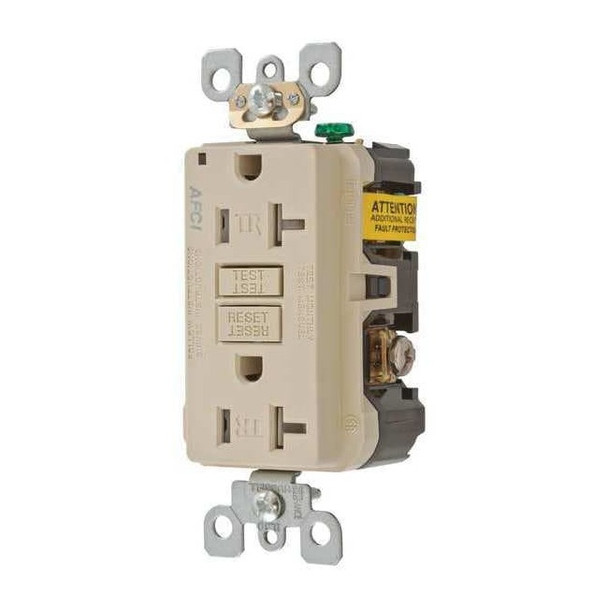

Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded AFR20TRI

The HUBBELL 5-20R Arc Fault Receptacle is a flush mount, standard duplex outlet rated for 20 amps and 125V AC. Suitable for use in commercial environments, this receptacle includes arc fault circuit interruption (AFCI) technology that interrupts power during arcing conditions. The unit supports both back and side wiring methods with screw terminals and includes tamper- properties.Key Features of the HUBBELL 5-20R Arc Fault Receptacle: AFCI: Arc fault protection interrupts power during specified arcing conditions.Amperage/Voltage: Rated for 20 A at 125V AC; suitable for general use circuits.Mounting Type: Flush mount design fits standard electrical boxes; single gang configuration.NEMA Configuration: Duplex outlet with NEMA 5-20R straight blade configuration.Tamper : Includes a built-in mechanism designed to limit foreign object insertion into the slots.Nylon housingOperating Temperature Range: Functions between -30°F and 150°F (-34°C to 66°C).Wiring Method: Accepts both back and side wire connections via screw terminals.Standards Compliance: Meets UL498, UL1699A E366570, CSA C22.2 No.42, NEMA WD-6 requirements.
