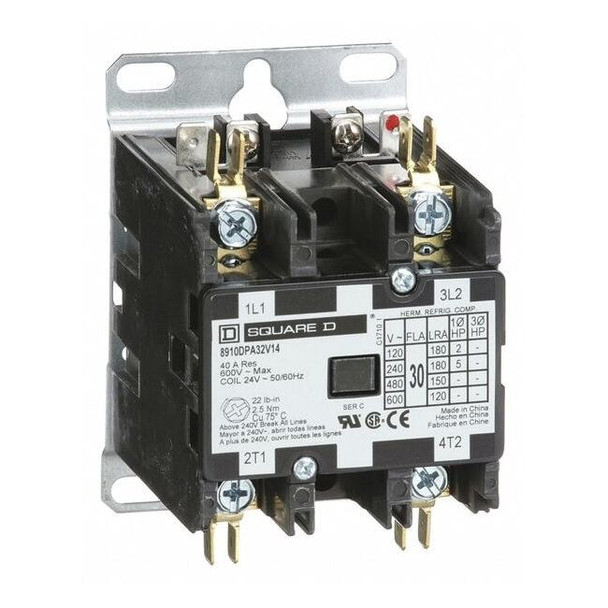

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase 8910DPA32V14

The SQUARE D - 8910DPA32V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Action: Non-Reversing – this means that the current flow direction remains constant during operation.Coil Voltage: The coil voltage requirement is 24V AC which effectively engages or disengages its electrical circuit.Electrical Connection: The contactor uses Binder head; Quick connect terminals for attaching to an electrical circuit.Frequency: Rated for operation within the specified 50/60 Hz frequency ranges.Full Load Amps-Inductive & Resistive: Has a rated capacity for handling up to a maximum current of 30A for inductive loads and 40A for resistive loads under normal operating conditions.Horsepower @ Single Phase - 120V AC & Horsepower @ Single Phase -240V AC : Rated for controlling power output up to a maximum of 2 hp at single-phase,120V AC and up to 5hp at single-phase, 240V AC under normal operating conditions.Pole Contact Composition: Contains two Normally Open contacts determining how electrical circuits are controlled during operation
