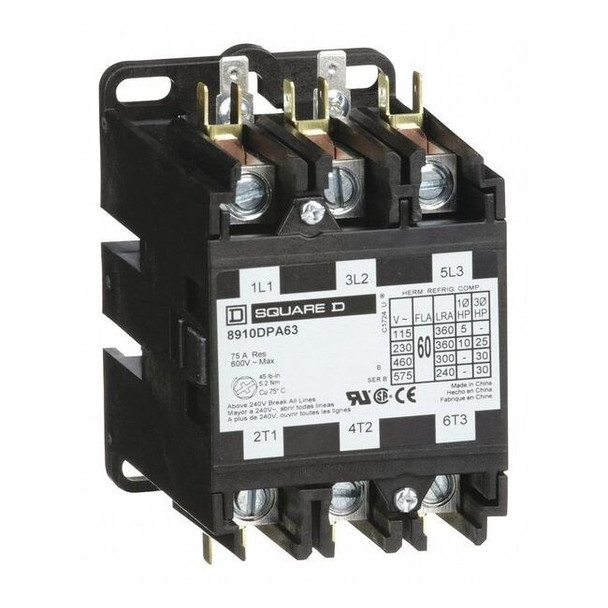

Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase 8910DPA63V09

The SQUARE D - 8910DPA63V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Action: Non-Reversing – The contactor functions in a non-reversing mode where the current flow direction remains constant.Coil Voltage: Rated for operation within the specified voltage ranges of 208-240V AC.Depth: With a depth measurement of 3.67 inches, it indicates how far it extends into the mounting surface or enclosure.Frequency: Rated for operation at an electrical cycle frequency of 50/60 Hz.Full Load Amps-Inductive & Resistive: Rated for handling currents up to a maximum of 60 A (inductive loads) and 75 A (resistive loads).Horsepower @ Single Phase & Three Phase: Compatible with controlling varying horsepower in both single-phase and three-phase settings, as per the specifications provided.Number of Poles: With three poles, this contactor can switch multiple circuits simultaneously providing versatile control in various industrial applications.
