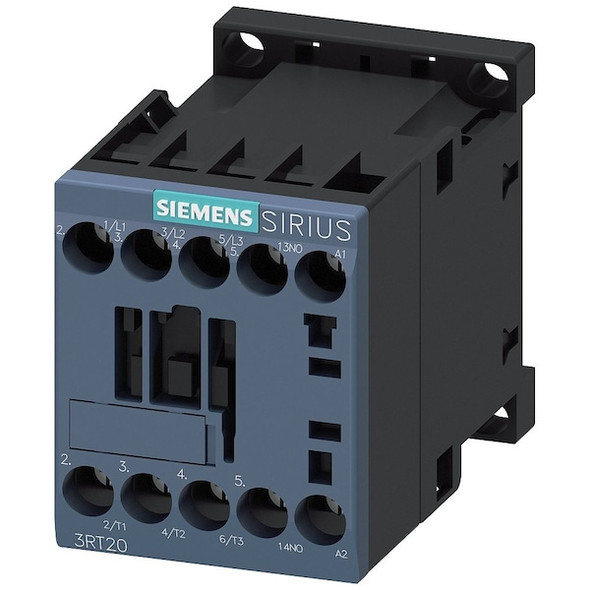

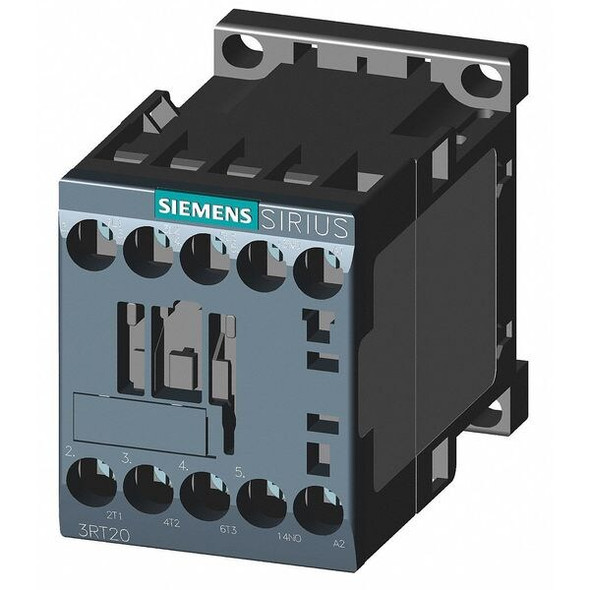

IEC Magnetic Contactor, 1NC-1NO, 220V-240V AC, 3 P, Non-Reversing, Screw 3RT20241AP60

The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a non-reversing, 3-pole device with a 220-240 V AC coil, featuring 1 normally open and 1 normally closed auxiliary contact. The unit uses screw terminals, has an open design with a maximum ingress protection rating of IP20, and supports mounting on DIN rail or a surface, within the SIRIUS 3RT20 family and frame size S0. - Action: Non-Reversing - Poles: 3 - Coil Voltage: 220-240 V AC - Includes Auxiliary Contacts: Yes (2 total: 1 NO / 1 NC) - Auxiliary Contact Configuration: 1NO/1NC - Main Contacts: 3 normally open - Termination: Screw - Enclosure: has an open design with a maximum ingress protection rating of IP20 - Mounting Style: DIN Rail, Surface; Mounting Position: Vertical - Frame / Series: S0; SIRIUS 3RT20 - Maximum Voltage Rating: 690V AC - Phase / Frequency: Three phase; 50/60 Hz - Full Load Amps: Inductive 12 A; Resistive 40 A - Mechanical Durability: 10,000,000 cycles - Overall Dimensions (HxWxD): 4.25 in x 3.45 in x 4.50 in - Embedded Surge Suppressor: No - Operating Temperature Range: rated for operation within the specified temperature range of -13°F to 140°F
