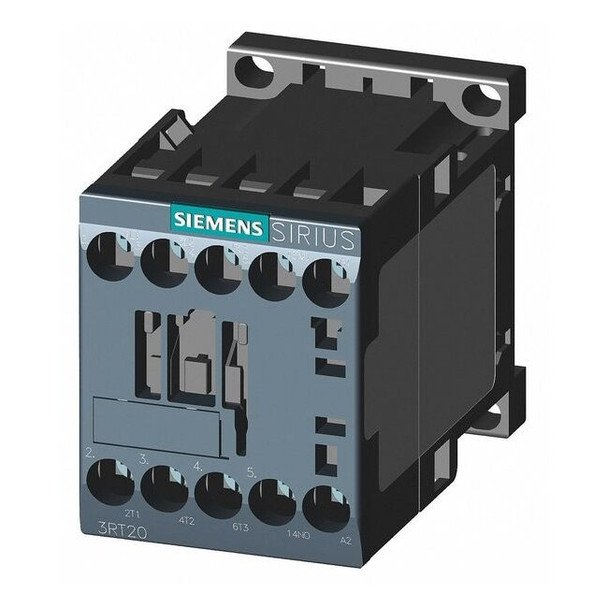

IEC Magnetic Contactor, 1NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20151AK61

The Siemens IEC Magnetic Contactor is an electrically operated switching device with 3 poles and a 1NO auxiliary contact. It is energized by a 110–120 V AC coil and rated for operation within IEC standards in the SIRIUS 3RT20 series. It uses screw terminals for connections. - Coil Voltage: 110–120 V AC - Frame Size: S00; Frame / Series / Class / Code: S00; Series: SIRIUS 3RT20 - Depth: 2.87 in; Overall Depth: 3.25 in - Height: 1.77 in (mounting); Overall Height: 2.40 in - Width: 1.77 in (mounting); Overall Width: 1.95 in - Electrical Connection: Screws - Terminal Connection Type: Screw - Embedded Surge Suppressor: No - Mounting Style: DIN Rail, Surface; Mounting Position: Vertical - Frequency: 50/60 Hz - Phase: Three - Poles: 3 - Reversing: No - Maximum Voltage Rating: 690V AC - Max. Operating Watts: 3 kW (at 400V, AC-4/AC-3); 11 kW (at 400V, AC-1) - Maximum Operating Temperature: 140 Degrees F - Minimum Operating Temperature: -13 Degrees F - Full Load Amps-Inductive / Full Load Amps-Resistive: 7 A / 18 A - HP @ 1 Phase - 120V: 1/4 hp; HP @ 1 Phase - 230V: 45720; HP @ 1 Phase - 240V: 3/4 hp - HP @ 3 Phase - 208V: 1 1/2 hp; HP @ 3 Phase - 240V: 2 hp; HP @ 3 Phase - 480V: 3 hp; HP @ 3 Phase - 575V: 5 hp - Hz: 50/60 - Series: SIRIUS 3RT20 - Standards: REACH Art 33, WEEE (2012/19/EU)
