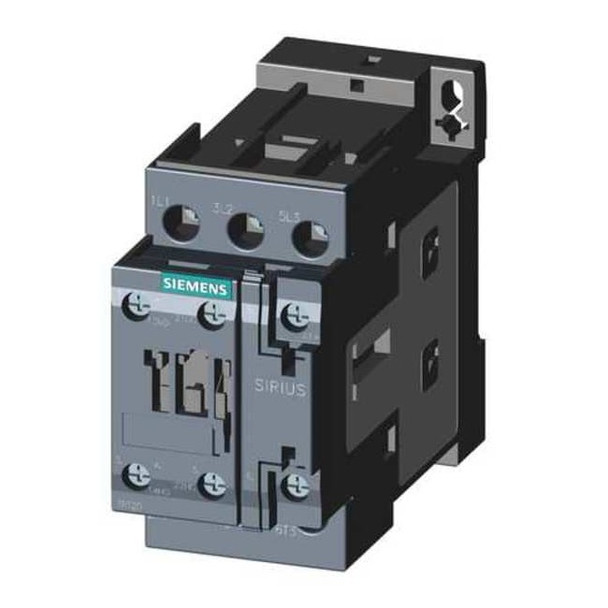

IEC Magnetic Contactor, 1NC-1NO, 24V DC, 3 P, Non-Reversing, Screw 3RT20241BB40

SIEMENS IEC Magnetic Contactor, 3-pole, non-reversing with a 24 V DC coil. It is rated for switching power circuits within specified parameters and is part of the SIRIUS 3RT20 series (Frame S0). Includes auxiliary contacts (1NO/1NC); configuration as a 3-pole controller with normally open main contacts. Key features - Poles: 3; Main contacts: 3 normally open - Auxiliary contacts: 2 total (Auxiliary configuration: 1NO/1NC; Auxiliary form: 1NC/1NO) - Coil: 24 V DC - Electrical connections: Screw terminals - Embedded surge suppressor: No - Enclosure: IP20-rated enclosure (if applicable) - Mounting: DIN Rail, Surface; Mounting Position: Vertical - Frame/Series: S0; Series: SIRIUS 3RT20 - Voltage rating: Rated for operation at voltages up to 690 V AC within specified conditions - Full Load: Suitable for loads up to the specified current ratings under normal operating conditions - Horsepower (selected voltages/phases): Rated horsepower at various voltage and phase configurations according to specifications - Phase: Three - Reversing: No - Response time (AC): Typical response times based on testing under standard conditions - Mechanical durability: 10,000,000 cycles - Operating temperature: -13 °F to 140 °F - Maximum voltage: 690 V AC - Dimensions (approx.): Depth 4.2 in; Height 4.1 in; Width 2.2 in - Standards: REACH Art 33, WEEE (2012/19/EU)
