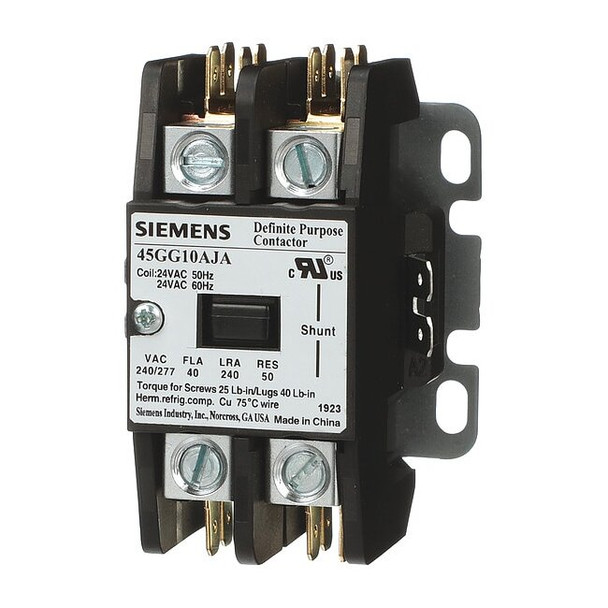

Definite Purpose Magnetic Contactor, 24V AC, 1 P, Non-Reversing, 1 Phase, Screw 45GG10AJA

The SIEMENS - 45GG10AJA is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Auxiliary Contact Module Capacity: The contactor does not have additional secondary circuits for controlling multiple electrical loads or signals.Coil Voltage: The coil within this contactor is rated for operation within a voltage range of 24V AC.Contact Material: Constructed with Silver Cadmium Oxide contacts which influences conductivity, durability, and resistance to corrosion.Frequency: Rated for operation within the specified frequency range of 50/60 Hz.Full Load Amps-Inductive & Resistive: Rated for handling a maximum continuous current when controlling inductive loads (40 A) and resistive loads (50 A).Horsepower @ Single Phase - 120V AC & 240V AC: Controls maximum power output when operating on a single-phase at both 120-volt (3 hp) and 240-volt (5 hp) alternating current electrical system.Mechanical Operating Durability: Tested under controlled conditions to perform up to 250,000 cycles.Number of Normally Open Main Contacts: Contains one main contact that remains open when the device is not powered allowing professionals to control multiple circuits with varying degrees of power requirements.Phase: Operates on a single-phase power line supplyResistance Properties: Constructed with materials that have shown resistance properties against welding sparks under specific testing conditions.Terminal Connection Type: Connected to an electrical circuit through screw clamps, ensuring secure and reliable connections.
