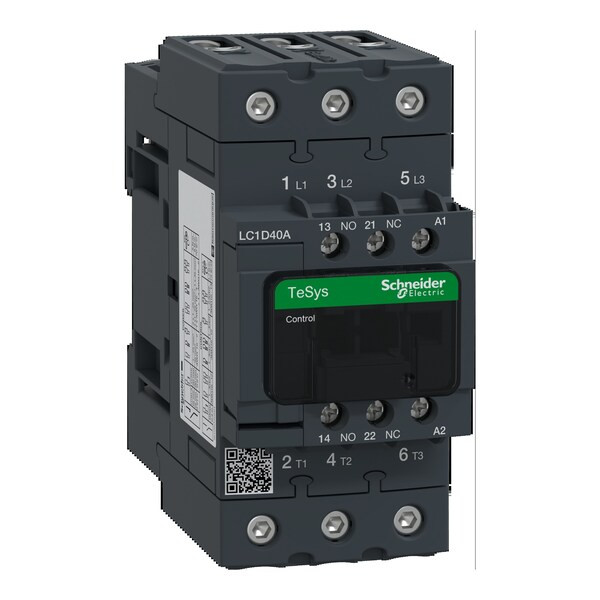

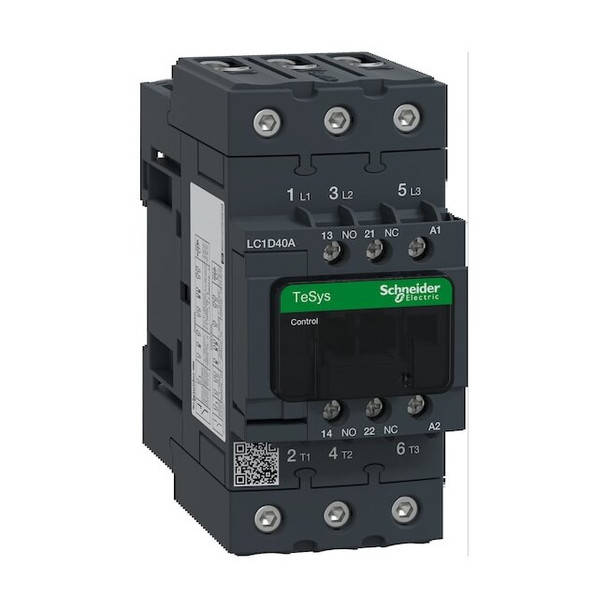

IEC Magnetic Contactor, 1NC-1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D40AG7

The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for use in applications compliant with IEC standards. This 3-pole, non-reversing contactor uses a 120 V AC coil to energize the main and auxiliary contacts, enabling control of motors and other loads. It features 3 normally open main contacts and 2 auxiliary contacts (1NO/1NC), with screw clamp terminals for wiring. The unit is part of the TeSys Deca family, ships with Everlink power connections and a protective cover, and has no enclosure (IP20). Rated for operation within the specified voltage ranges, it is suitable for 50/60 Hz applications and is designed for three-phase systems. - Action: Non-Reversing - Application: Motor Control, Resistive Load - Coil Voltage: 120 V AC - Poles / Main Contacts: 3 poles; 3 normally open - Auxiliary Contacts: 2 (1NO/1NC); Configuration: 1NO/1NC - Electrical Connection: Screw Clamp Terminals - Frame/Series: TeSys (TeSys Deca); Contactor Style: IEC - Phase / Frequency: Three; 50/60 Hz - Rated Voltage: 690 V AC, 300 V DC; Overvoltage Category: CAT III - Enclosure: IP20; Enclosure type: No Enclosure - Included/Accessories: Everlink Power Connections; Protective Cover; Includes Auxiliary Contacts - Durability: Mechanical 6 Mcycles; Electrical 1.4–1.5 Mcycles - Load/Current Ratings: Full Load Amps (Inductive 40 A; Resistive 60 A) - HP Ratings: 3 hp @ 120 V; 5 hp @ 230/240 V; 10 hp @ 208/240 V (3‑phase); 30 hp @ 480/575 V (3‑phase) - Weight/Dimensions: Net Weight 0.85 kg; Height 4.8 in; Width 2.17 in; Overall Depth 4.72 in - Other electrical specs: Inrush 140 VA; Hold 13 VA; Impedance 1.5 mΩ; Switching Voltage 17 V (Signalling Circuit)
